Control System Wiring Diagram Part 2 With Immobilizer System
Control System Wiring Diagram Part 2 With Immobilizer System

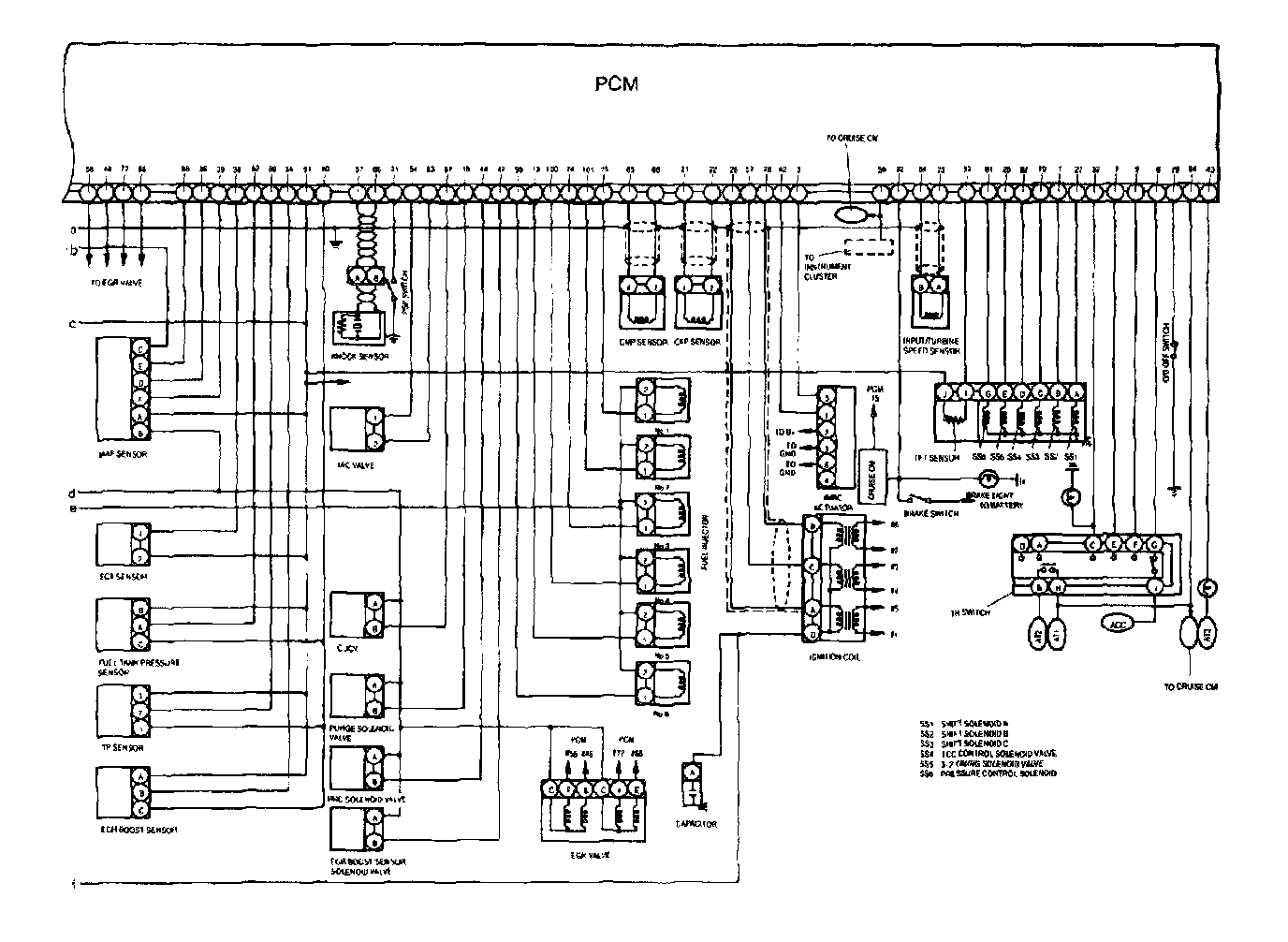

Diagram - With Immobilizer System (Part 2 Of 2):
