EGR Valve: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the air cleaner.
3. Disconnect the vacuum hose.
4. Disconnect the EGR pipe.

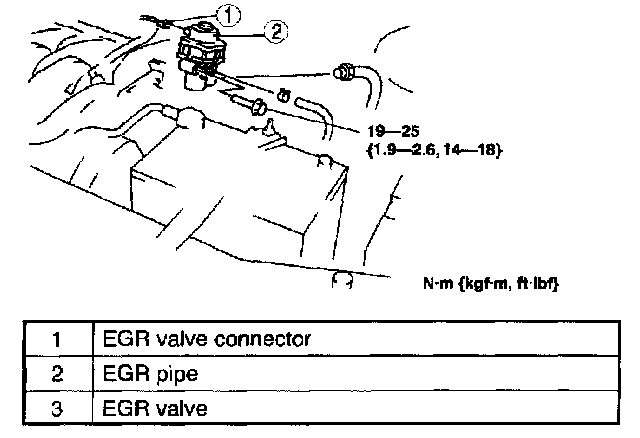

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Connect the negative battery cable.
