Insulation Case Resistance

1. Disconnect the high-tension lead.
2. Disconnect the ignition coil connector.

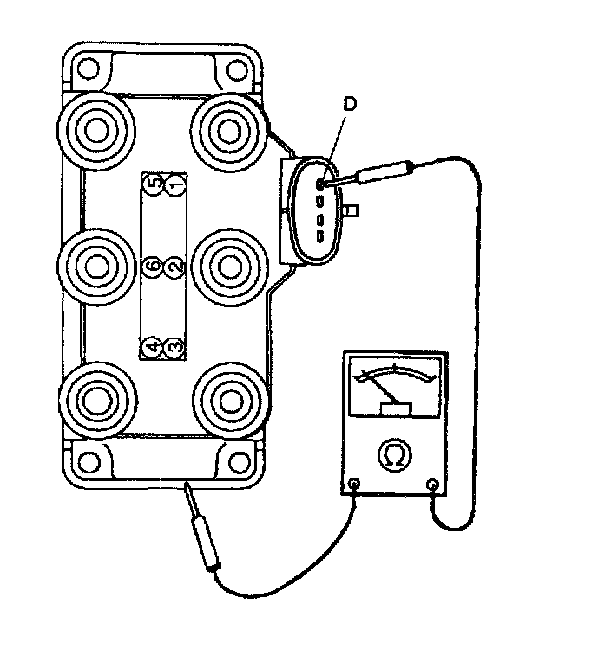

3. Measure the insulation resistance from terminal D to ignition coil case using an ohmmeter capable of reading 10 MOhms or over.
- If not as specified, replace the ignition coil.

Specification
Above 10 Mohms
