Rear Entertainment System - Overview/Troubleshooting
BULLETIN NUMBER:09-005-00
DATE:
April 25, 2000
SECTION:
09
SUBJECT:
REAR SEAT ENTERTAINMENT SYSTEM OVERVIEW & TROUBLESHOOTING
MODELS:
All 2000 MPV with Rear Seat Entertainment System (RSES)
DESCRIPTION:
Some vehicles will come equipped with the RSES. The major components to this system include the monitor, video cassette player and features the ability to hear audio through the vehicle's sound system. In addition, the RSES is TV ready. To enable the TV feature, the optional antennas are required.
The following information has been provided to better understand this system.
Note:
This information replaces the previously released Parts Flash, RF-00-05, dated February 18, 2000.
2000 MPV REAR SEAT ENTERTAINMENT SYSTEM (RSES) OVERVIEW:

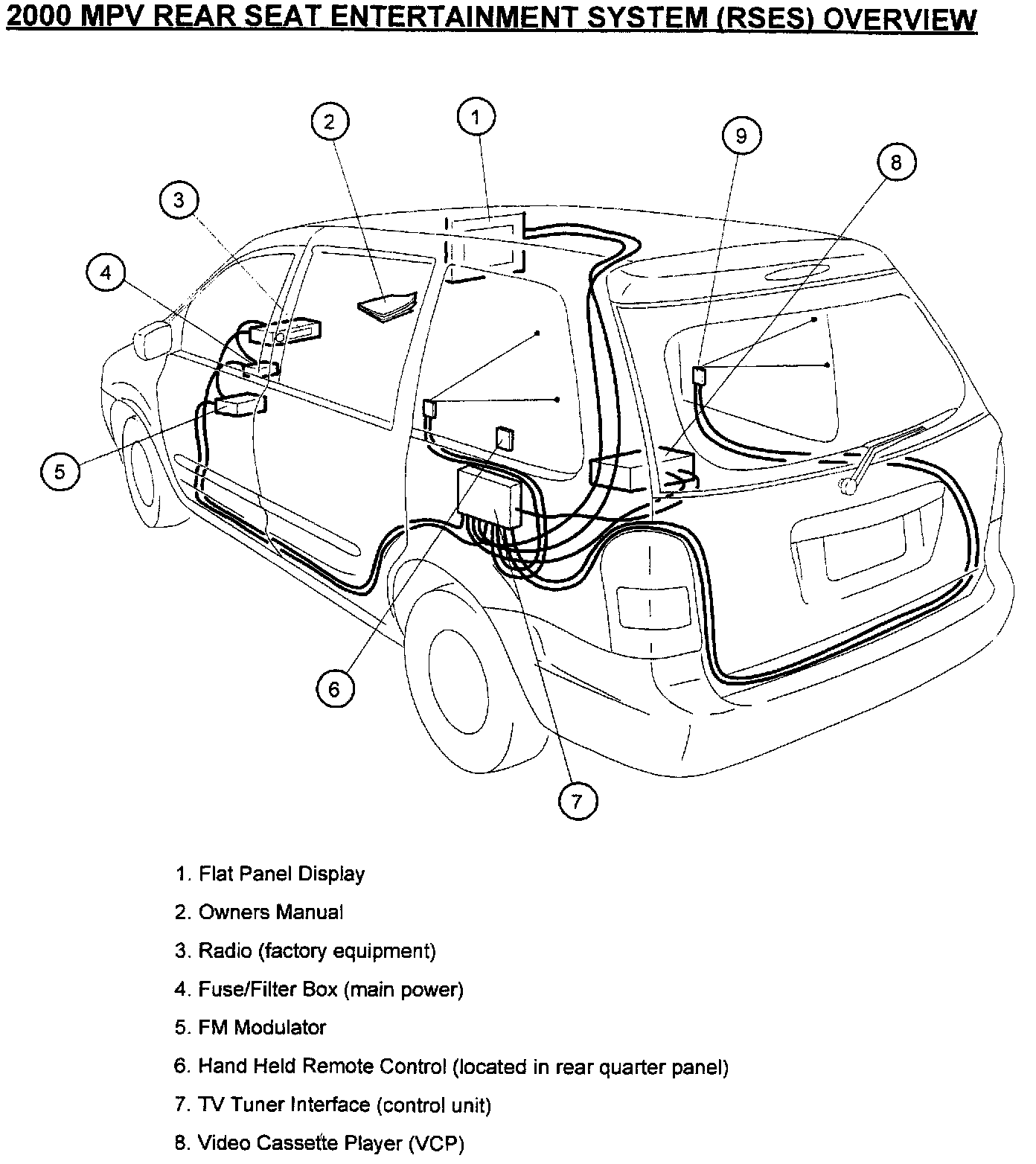

MPV REAR SEAT ENTERTAINMENT SYSTEM
QUICK-START USERS GUIDE:
Note: The RSES system has a temperature sensor that will not allow it to activate if the interior temperature is below 32 degrees Fahrenheit. If the green colored light on the front of the monitor is flashing, this means that the temperature is below 32 degrees Fahrenheit. When the light is steady, the system is ready for operation.
TO OPERATE THE SYSTEM, FOLLOW THE STEPS BELOW:
1. Be sure all appropriate fuses are installed.
2. Turn ignition to ACC or On.
3. Turn radio on and tune to 88.7 FM (in some cases you may need to tune to 89.1 FM)
4. To release the monitor, press the button on the monitor housing that is mounted on the headliner.
5. Pull the monitor unit down to the vertical position.
6. Remove the remote control from the storage pocket that is located inside the rear left quarter panel.
7. Verify the green light is illuminated "Steady" on the monitor. If the green light is flashing, warm up the interior until the temperature is above 32 degrees Fahrenheit.
8. Turn on the monitor by depressing the "LCD Power" button on the remote control. Note: Make sure to point the remote control at the monitor.
9. Select "AV1,' by depressing the �'TV/AV" button on the remote control.
10. Depress the "Audio" button on the remote control and select the "Speaker On" function. This function will allow the audio to be heard from the vehicle's radio system.
11. Insert a VHS cassette tape into the Video Cassette Player.
12. Adjust radio volume to desired level.
Note: In the event you need to change the system settings, press the menu button on the remote to access the on-screen adjustment options. Additional information can be found in the Owner's Manual, which is located in the glove box.
TO ENABLE THE TV FUNCTION
NOTE: Your RSES system is TV ready. To enable the TV feature, all that is required is to purchase the antennas, install and perform a "one time" simple programming.
ANTENNAS (0000-8F-F12)
This kit includes two (2) antennas, installation instructions and instructions to program the TV function. The audio can be heard from the vehicle's radio system. However, optional wired or wireless headphones are available. Details of the headphones are described below.
Note: The installation of the antennas require some interior panel removal. It's recommended that the dealer performs the antenna installation.
WIRED HEADPHONES (0000-8F-F1O)
Up to two (2) wired headphones can be used. To use the headphones, simply insert the plug into the phone jack that is located on the Flat Panel Display (Monitor) and adjust the volume control on the headphones.
Warning: keep the wire(s) away from small children.
WIRELESS HEADPHONES (0000-BF-F11)
Up to five (5) wireless headphones can be used. To use the headphones:
1. Install two (2) "AAA" batteries (not included) into the left earpiece.
2. Turn the main power switch to the "on" position. The switch is located on the right earpiece.
3. Place the headphones on and adjust the volume control that is located on the right earpiece.
Note: The headphones will only work when seated in the rear seat(s) When the headphones are not in use, turn "0ff" the main switch.
Further information can be found in the Owner's Manual

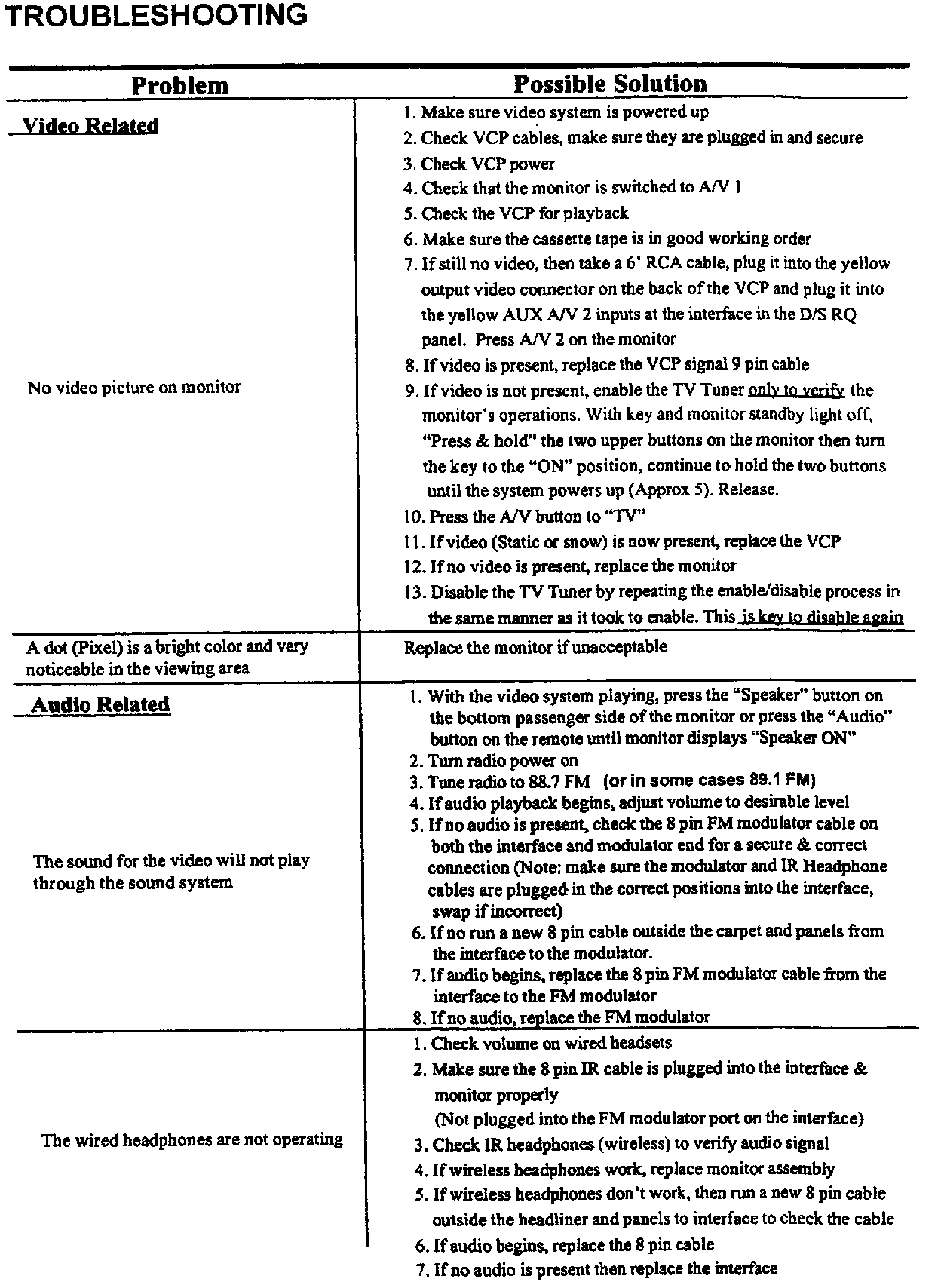

TROUBLESHOOTING:

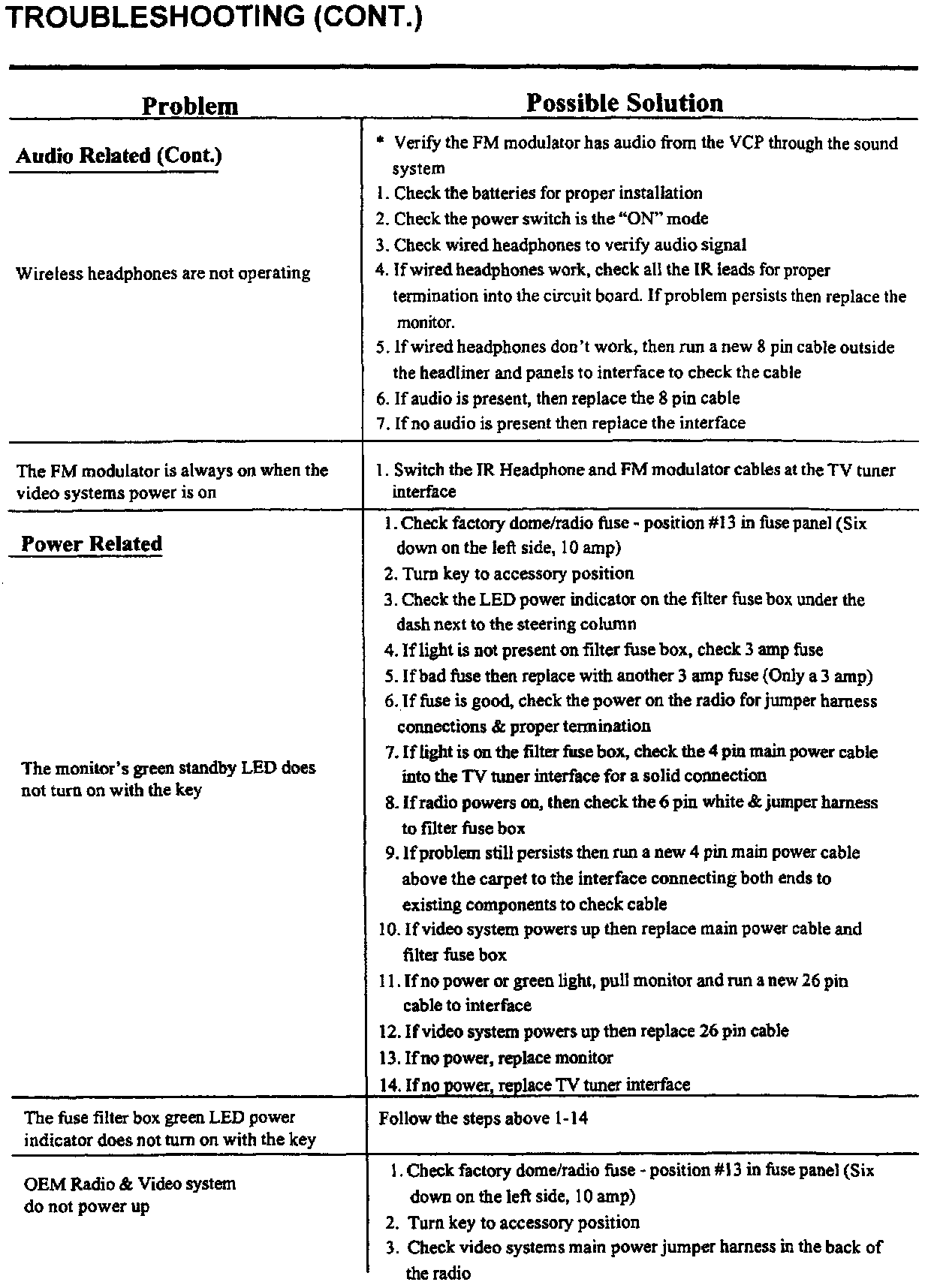

TROUBLESHOOTING (CONTINUED):

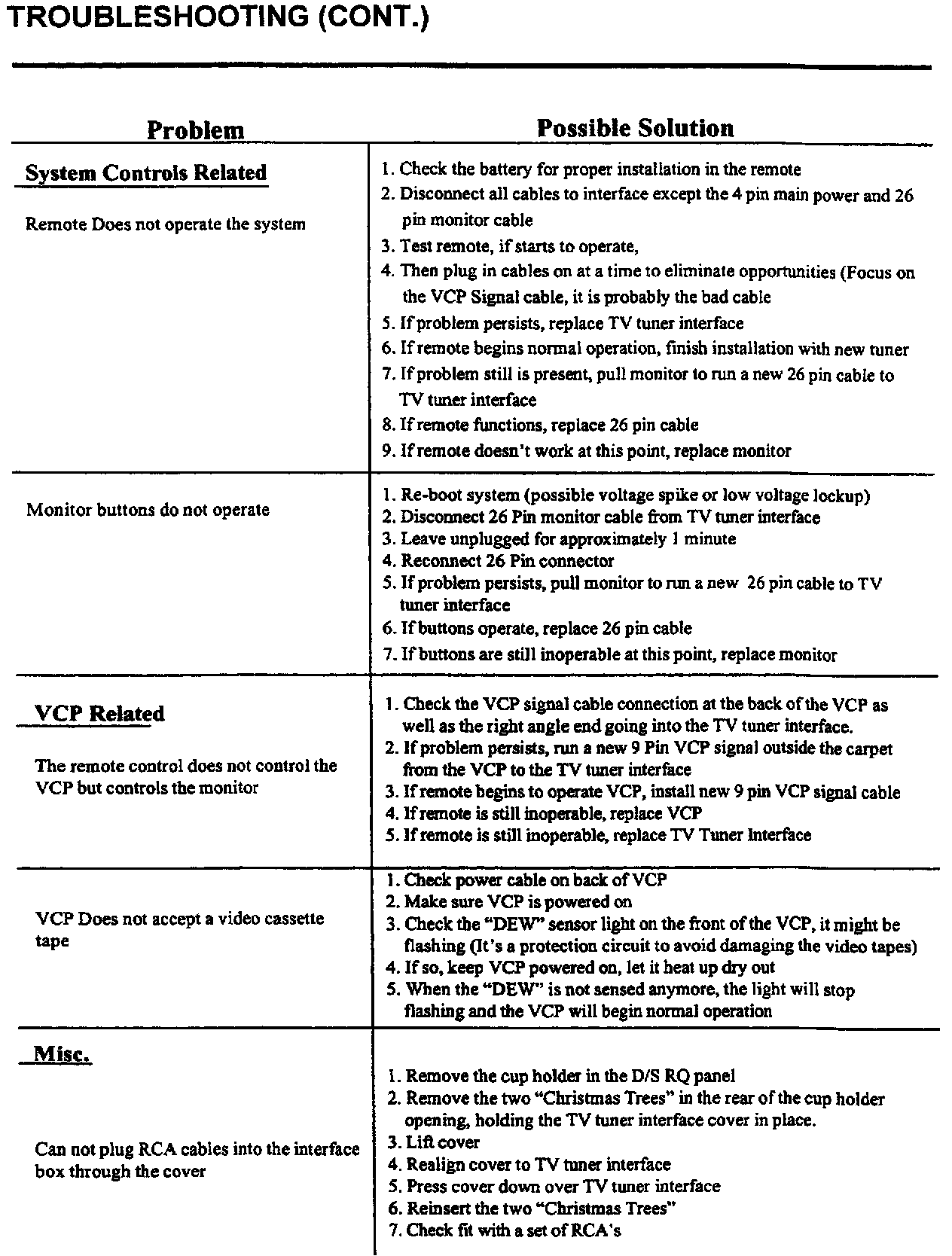

TROUBLESHOOTING (CONTINUED):

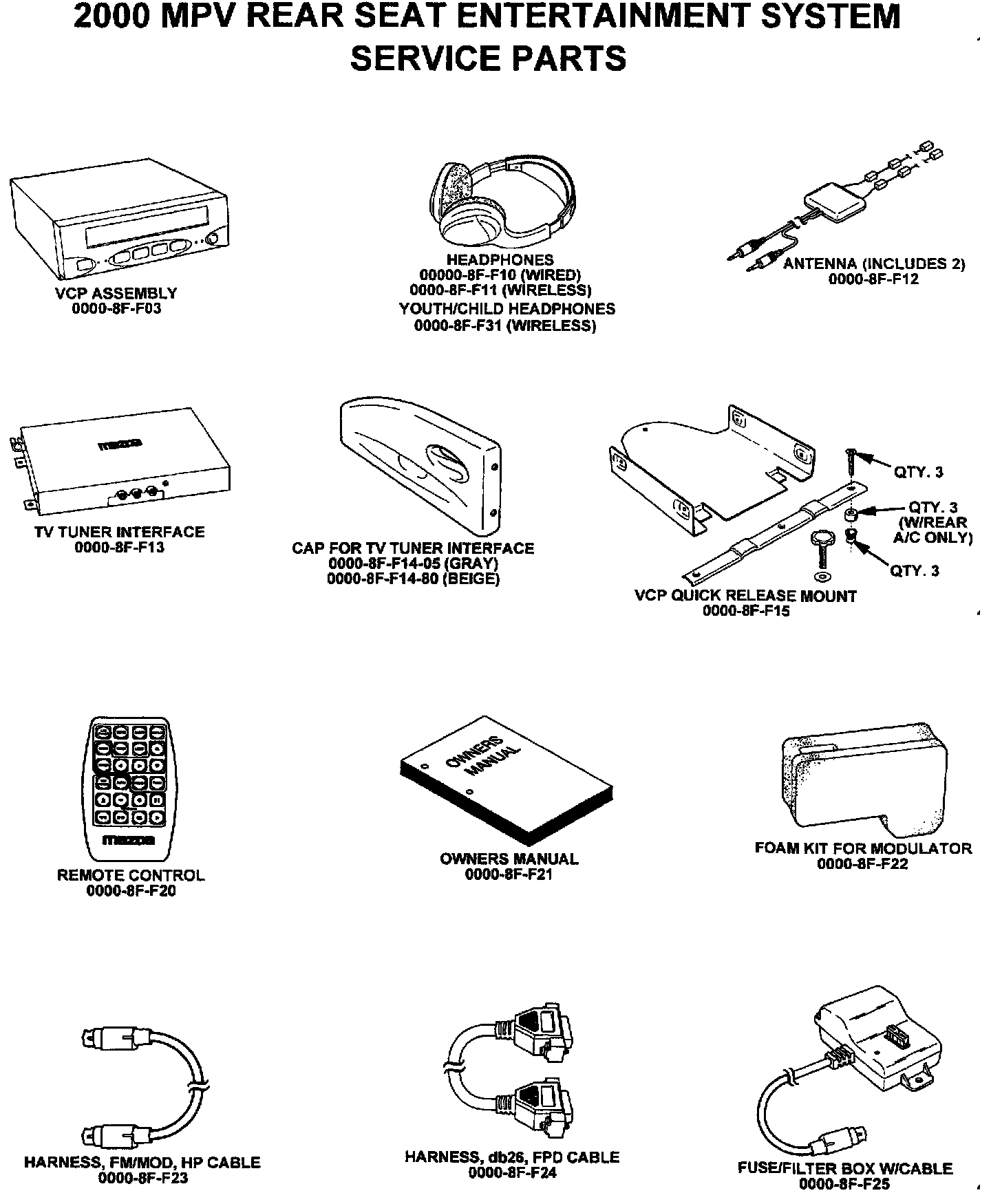

2000 MPV REAR SEAT ENTERTAINMENT SYSTEM SERVICE PARTS:

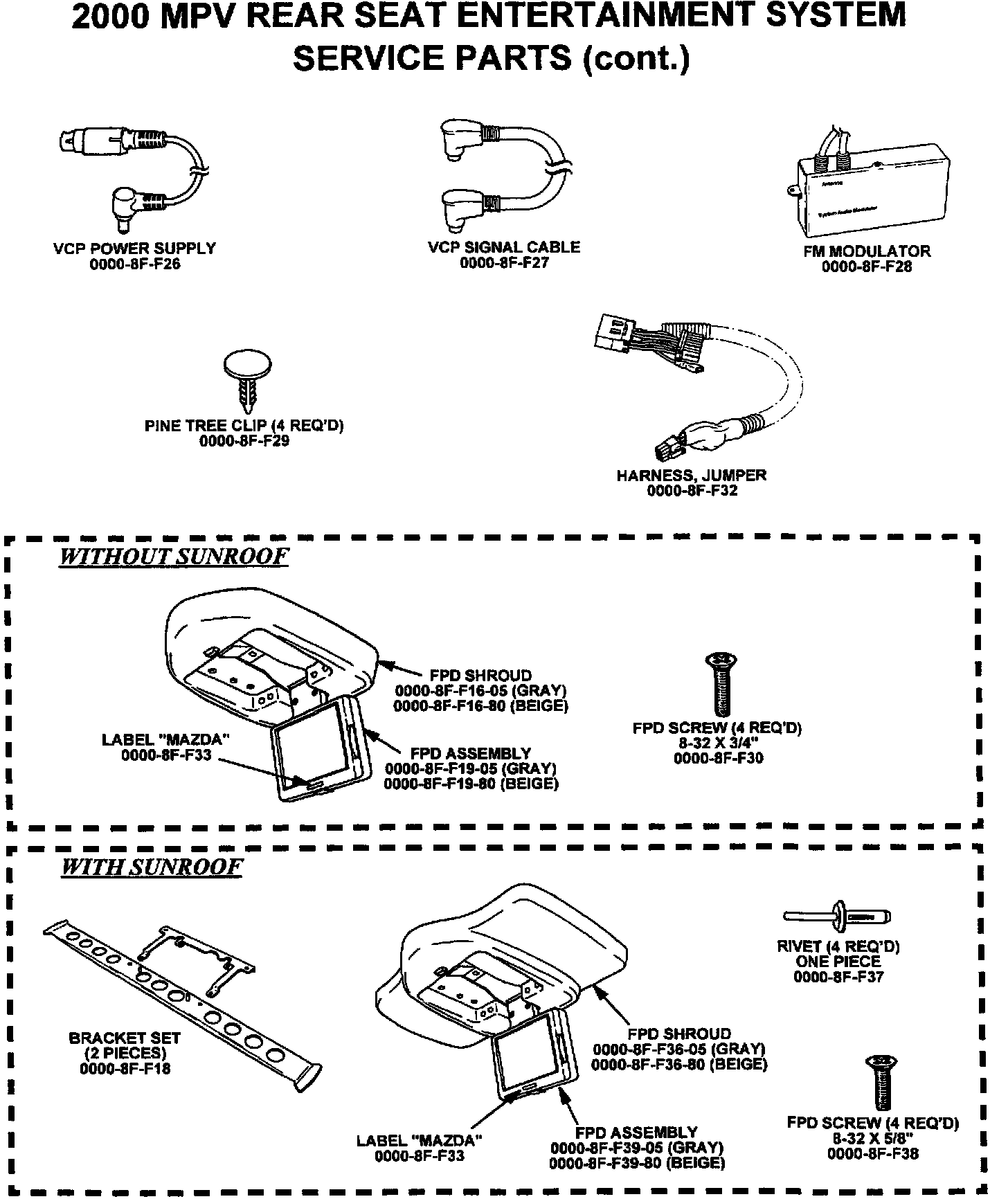

2000 MPV REAR SEAT ENTERTAINMENT SYSTEM SERVICE PARTS (CONTINUED):
Consumer Notice:
