Overdrive Indicator Lamp: Testing and Inspection

O/D OFF INDICATOR LIGHT INSPECTION
Inspection of Operation
1. Turn the ignition switch from OFF to ON position.

Note The O/D OFF indicator light will illuminate if a malfunction exists in any of the EC-AT system components.

2. Verify that the O/D OFF indicator light is not illuminated.
3. Press the switch and verify that the O/D OFF indicator illuminates.
- If the O/D OFF switch function is not as specified, after checking the O/D OFF switch, inspect the terminal voltage of the O/D OFF indicator light.

Inspection of Voltage
1. Remove the instrument cluster.
2. Turn the ignition switch on.

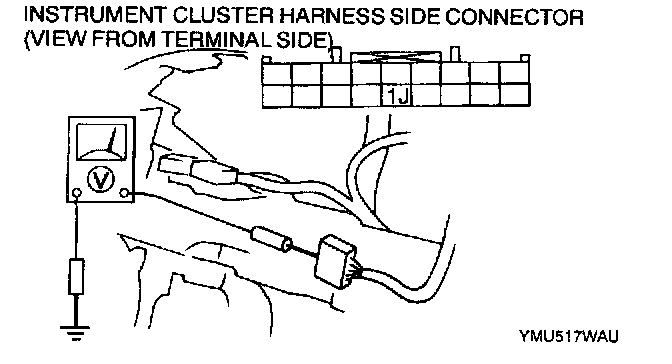

3. Measure voltage between terminal 1J and a ground.

Inspection of Continuity
1. Disconnect the negative battery cable.
2. Disconnect the instrument cluster connector.

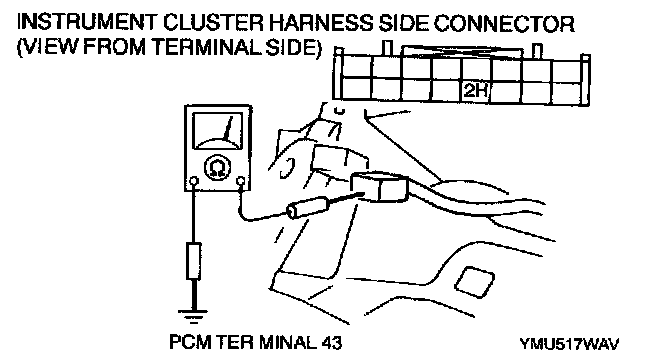

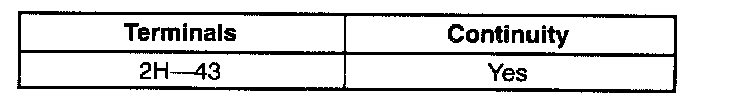

3. Inspect continuity between terminal 2H and PCM terminal 43.
- If not as specified, inspect the wiring harness (instrument cluster-PCM).
- If it is as specified, go to the next step.

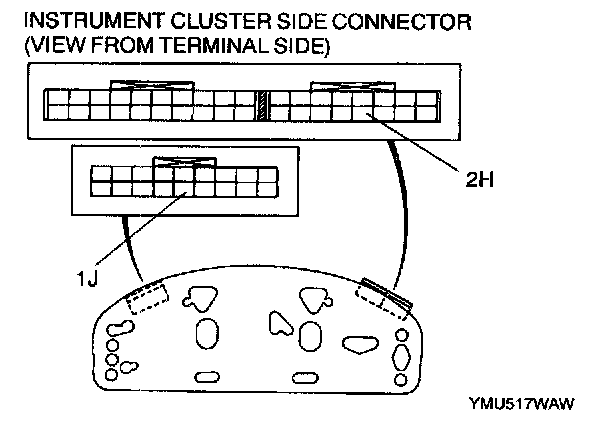

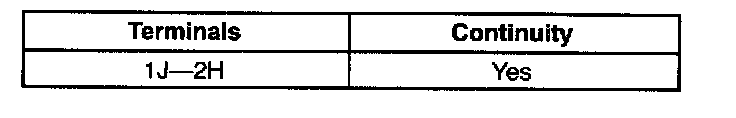

4. Inspect continuity between terminals 1J and 2H.
- If not as specified, replace the instrument cluster or bulb.
5. Install the instrument cluster.
6. Connect the negative battery cable.
