Key Interlock Resistor Removal/Installation

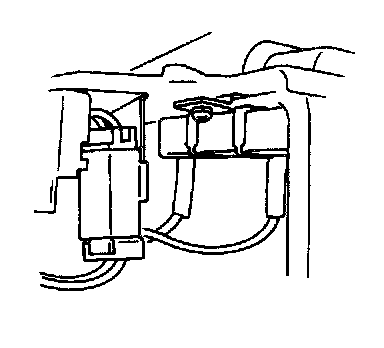

KEY INTERLOCK RESISTOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the key interlock resistor connector.





3. Remove the key interlock resistor.
4. Install the key interlock resistor.
5. Connect the key interlock resistor connector.
6. Connect the negative battery cable.
