Wiper and Washer Systems
>>
Locations
>>
Component Locations
Component Locations

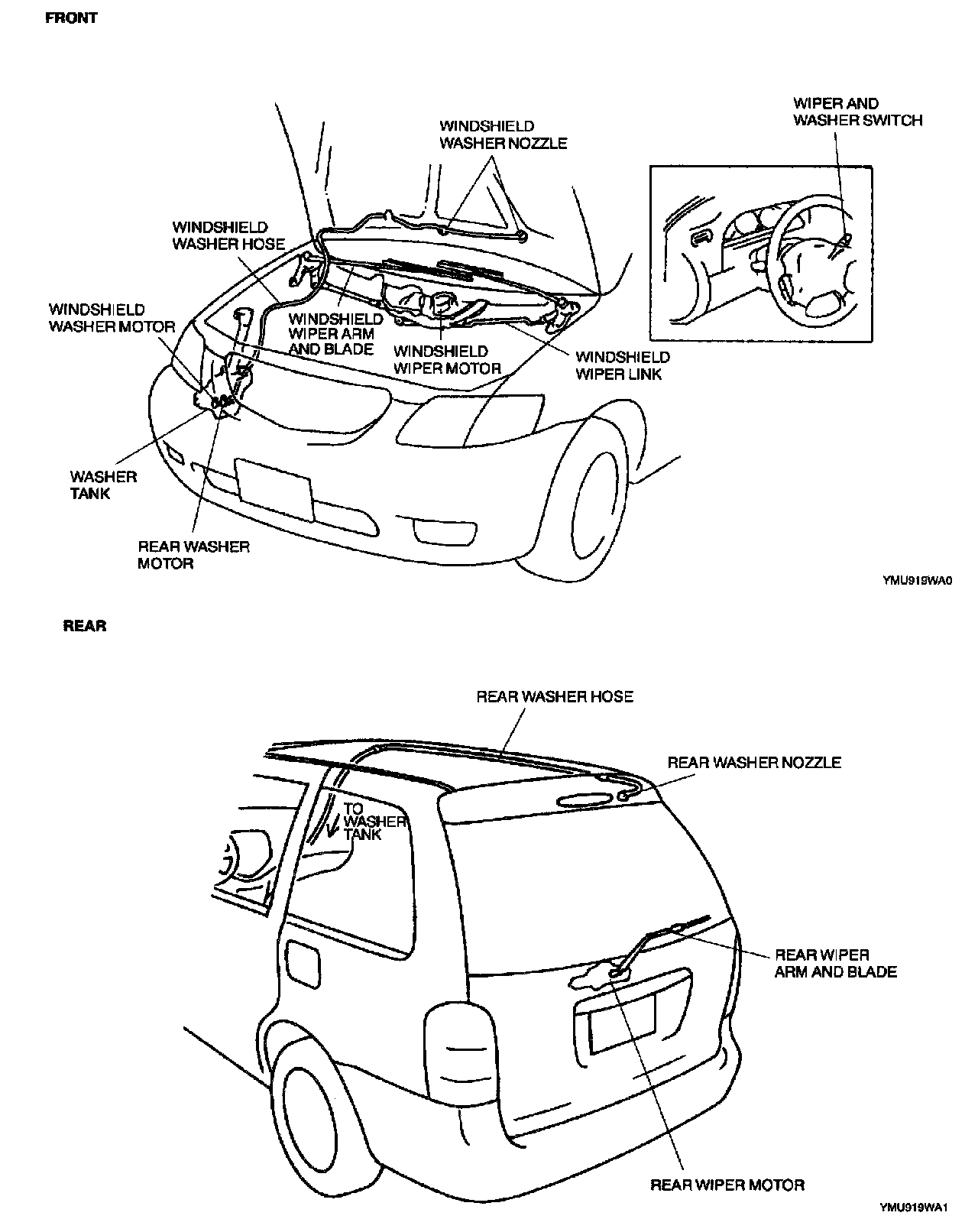

Wiper/Washer Systems Structural View:
