Wiper Switch: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the column cover.
3.

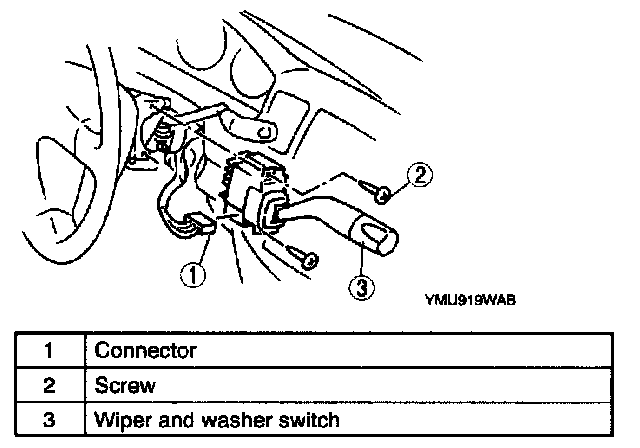

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
