Front Wheel Alignment

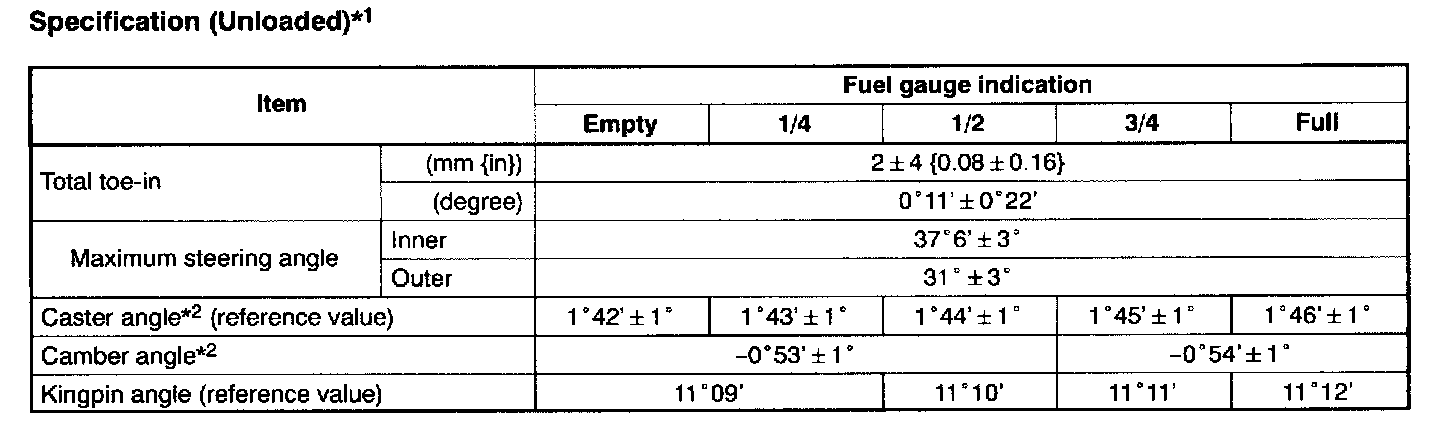

*1: Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2: Difference between left and right must not exceed 1°30'.

MAXIMUM STEERING ANGLE ADJUSTMENT
1. Loosen the tie-rod end locknuts.
2. Remove the steering gear boot clamp.

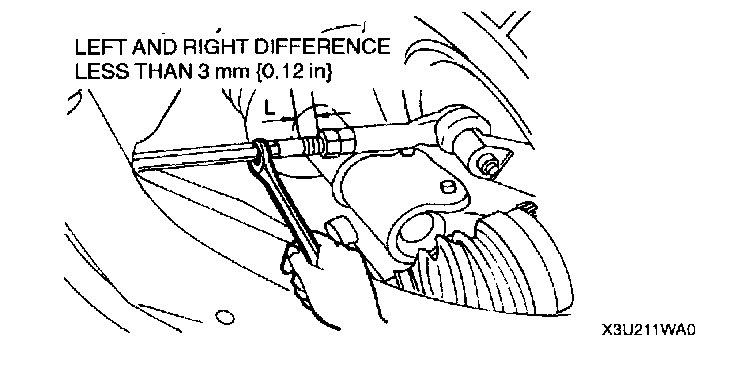

3. Turn the tie rods to equalize the length L.
Maximum left/right difference
3mm (0.12 inch)
4. Turn the tie rods equally to provide the correct maximum steering angle.
5. Tighten the tie-rod end locknuts.
Tightening torque
69 - 98 Nm (7.0 - 10.0 kgf-m, 50.7 - 72.3 ft.lbs.)
6. Verify that the boot is not twisted, and install the boot clamp.
7. Adjust the toe-in after adjusting the steering angle.

CAMBER ADJUSTMENT

Note Adjusting range is 30°.

1. Jack up the vehicle and remove the wheel and tire.





2. Replace the shown bolt and change it for the adjusting bolt.

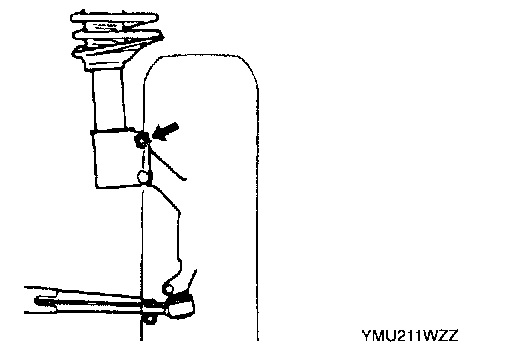

3. Adjust the camber by moving the shock absorber and the knuckle.
4. Tighten the nut to the specified torque.
Tightening torque
103 - 122 Nm (10.5 - 12.5 kgf-m, 76.0 - 90.4 ft. lbs.)
5. Jack down the vehicle after installing the wheel and tire.
6. Shake the vehicle to settle the suspension.
7. Inspect the camber and readjust it if necessary.

CASTER ADJUSTMENT
1. Jack up the front of the vehicle and support it on safety stands.

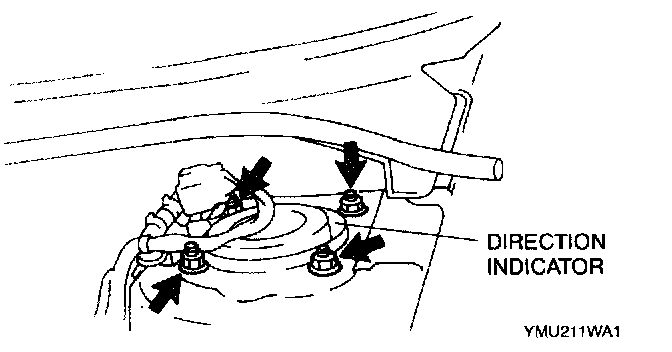

2. Remove the mounting block nuts.

Caution Use only position A to adjust. If other positions are used, the camber and caster will be out of the specifications.

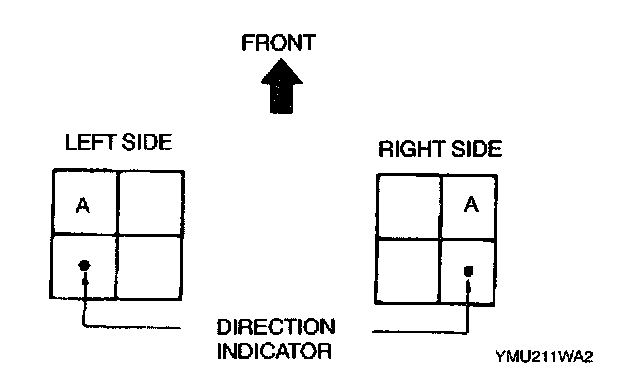

3. Push the mounting block downward, and turn it to position A.
Adjustable Value -30'
4. Install and tighten the mounting nuts to the specified torque.
Tightening torque
47 - 62 Nm (4.7 - 6.4 kgf-m, 34 - 46 ft. lbs.)

TOTAL TOE-IN ADJUSTMENT
1. Center the steering wheel and confirm that the vehicle wheels/tires are pointing straight.
2. Remove the steering gear boot clamp.
3. Loosen the left and right tie rod locknuts and turn the tie rods equally. Both tie rods are right threaded, so turning the right tie rod toward the front of the vehicle and the left toward the rear increases toe-in.

Note Turning both tie rods one complete turn changes toe-in by about 6 mm (0.24 inch) (0°36').

4. Tighten the tie rod locknuts to the specified torque.
Tightening torque
69 - 98 Nm (7.0 - 10.0 kgf-m, 50.7 - 72.3 ft.lbs.)
5. Verify that the boot is not twisted, and install the boot clamp.
