Blower Motor Resistor: Testing and Inspection

1. Disconnect the resistor connectors.

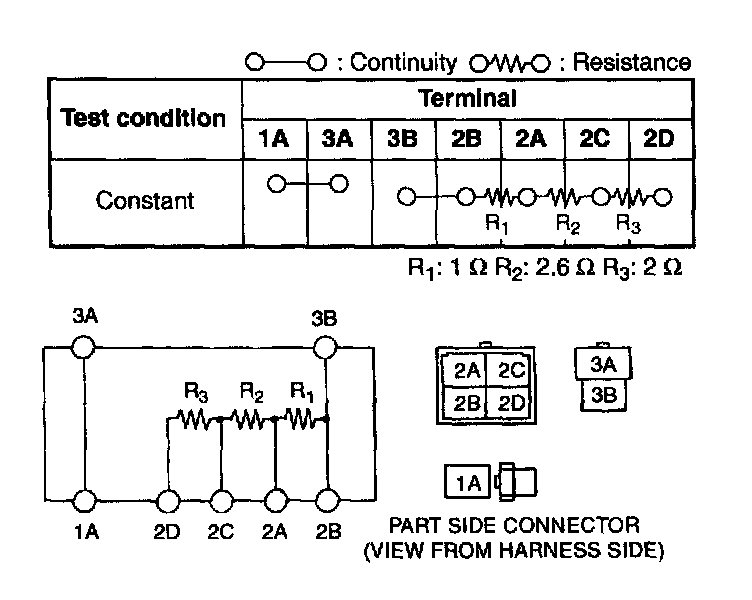

2. Inspect for continuity between the resistor terminals using an ohmmeter.
- If not as specified, replace the resistor.
