Wiper Motor: Service and Repair

1. Disconnect the negative battery cable.
2. Pry off the connection between the windshield wiper motor and windshield wiper link.

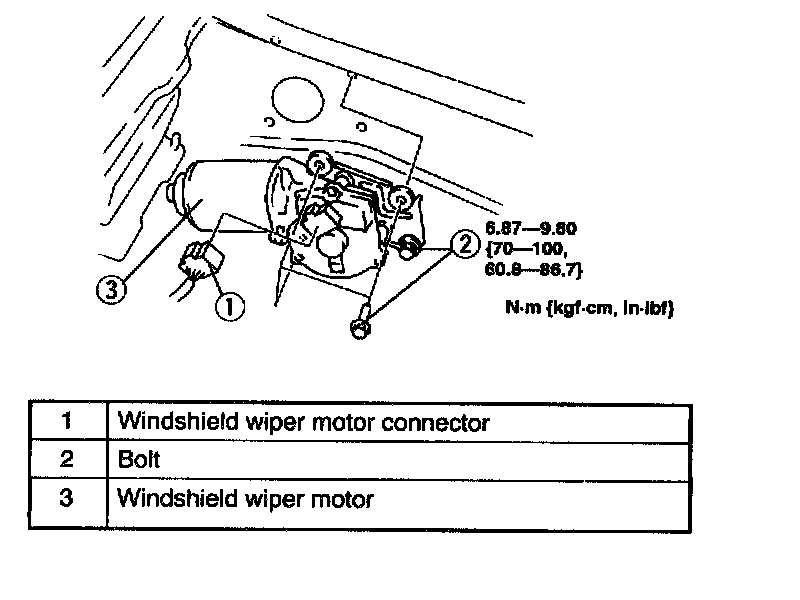

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

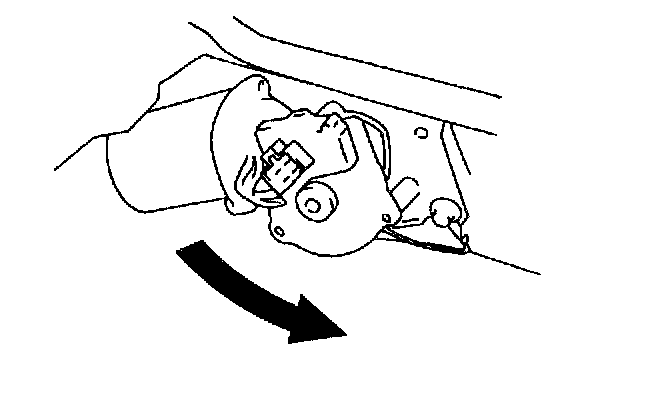

Windshield Wiper Motor Removal Note
Rotate the windshield wiper motor counterclockwise and then remove it.
