Front Seat

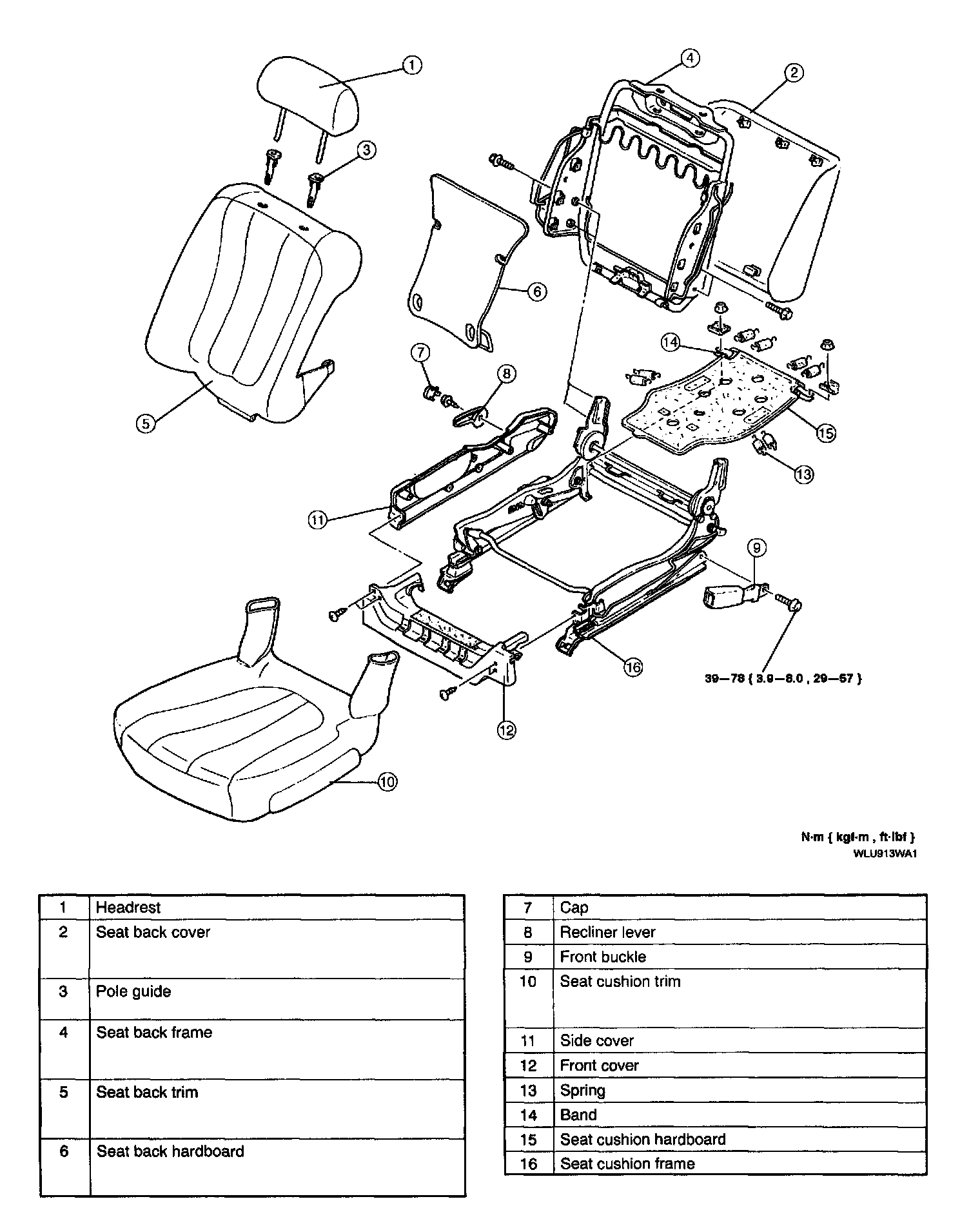

Manual Seat:

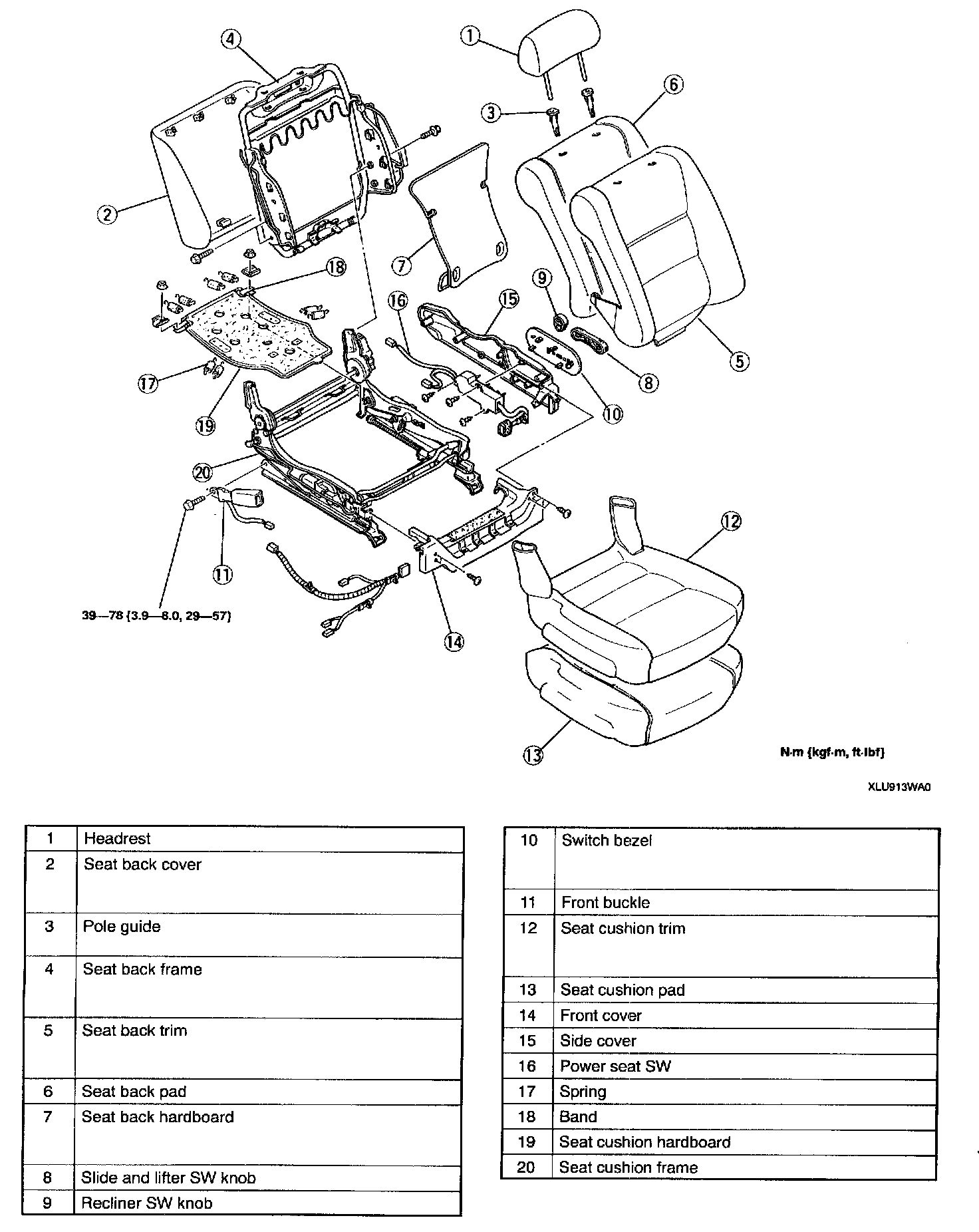

Power Seat:

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

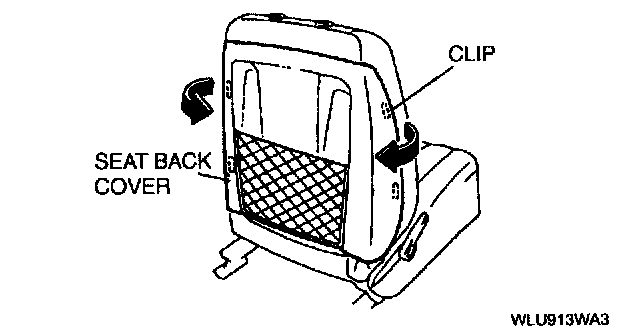

Seat Back Cover Disassembly Note




1. Pull the edges of the seat back cover to disengage the clips from the seat back frame.




2. Pull up the seat back cover upward to disengage the clips from the seat back cover.

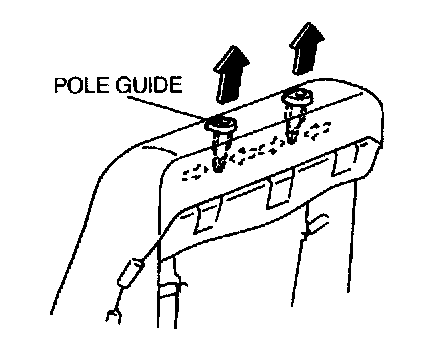

Pole Guide Disassembly Note




1. Squeeze the catches and push the pole guide upward.

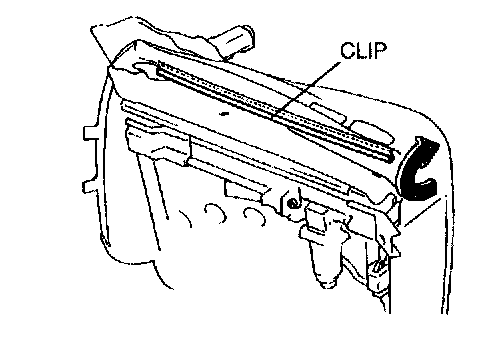

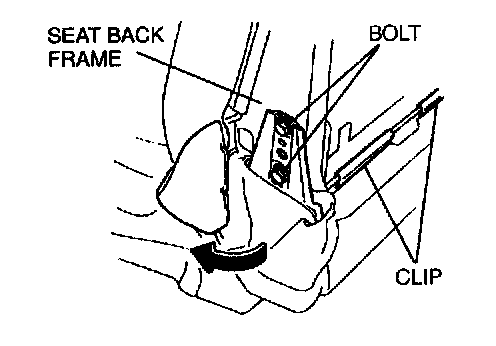

Seat Back Frame Disassembly Note
1. Remove the seat back trim installation clips from the seat back frame.




2. Remove the seat back frame installation bolts.

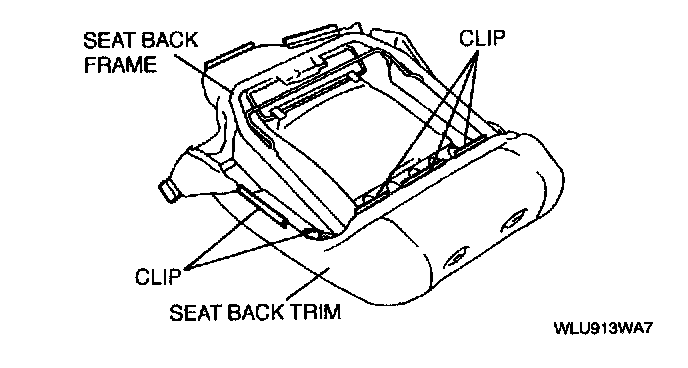

Seat Back Trim Disassembly Note




1. Remove the seat back trim installation clips from the seat back frame.

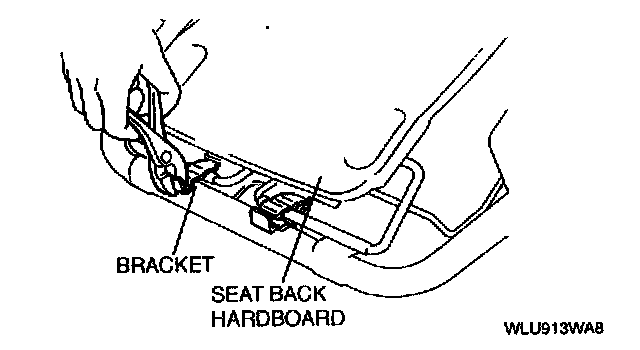

Seat Back Hardboard Disassembly Note




1. Bend the top of the seat back frame brackets up using a plier.

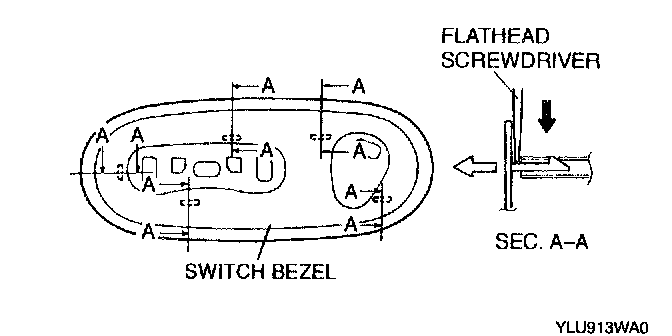

Switch Bezel Disassembly Note




1. Insert a flathead screwdriver wrapped in tape, as indicated in the table, and pull up to remove the clips.

Seat Cushion Trim Disassembly Note

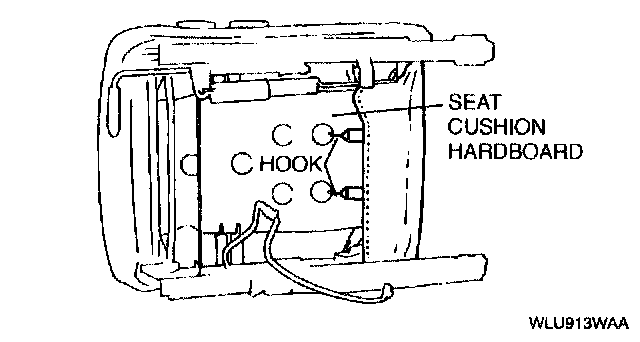

1. Remove the hooks from the seat cushion hardboard.

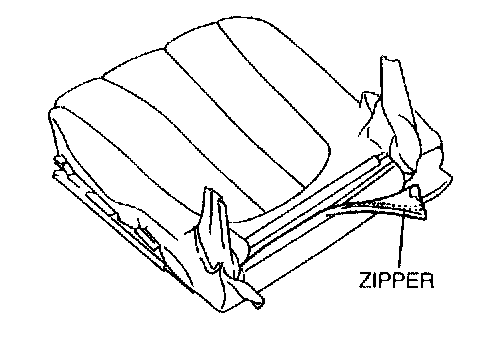

2. Unzip the zipper.




3. Remove the seat cushion trim installation clip from the side cover.

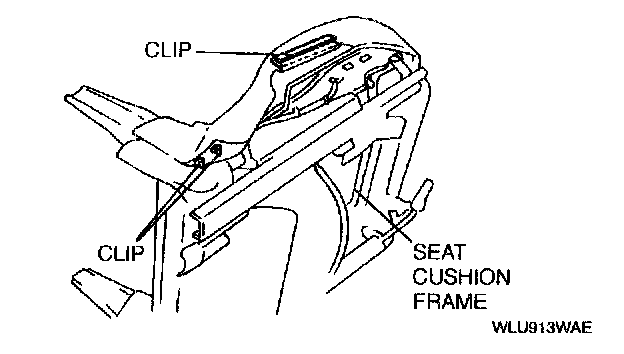

4. Remove the seat cushion trim installation clips from the seat cushion frame.

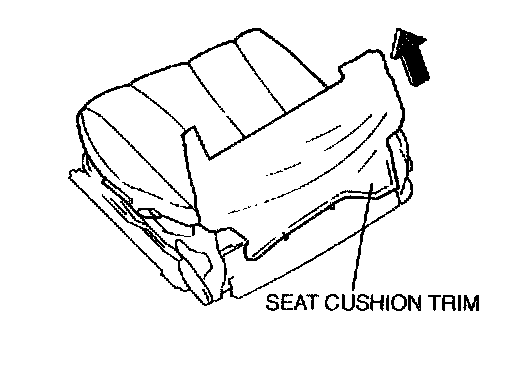

5. Pull the seat cushion trim upward to remove it.
