Front

FRONT CALIPER DISASSEMBLY/ASSEMBLY





1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

PISTON DISASSEMBLY NOTE





1. Place the Special Service Tool (SST) in the caliper.
2. Gently blow compressed air through the pipe hole to force the piston out of the caliper.

PISTON SEAL DISASSEMBLY NOTE

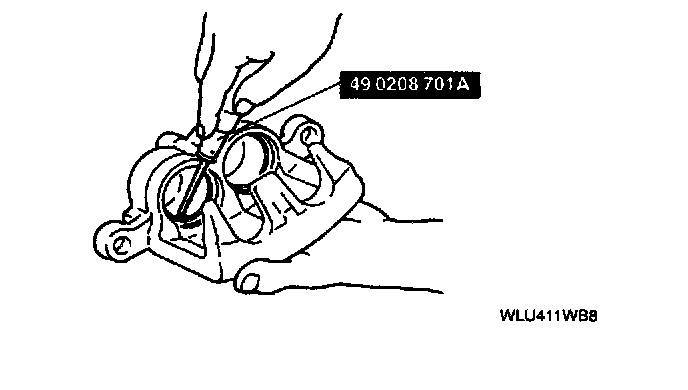

1. Remove the piston seal from the caliper using the Special Service Tool (SST).
