Ambient Temperature Sensor / Switch HVAC: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the radiator grille.
3.

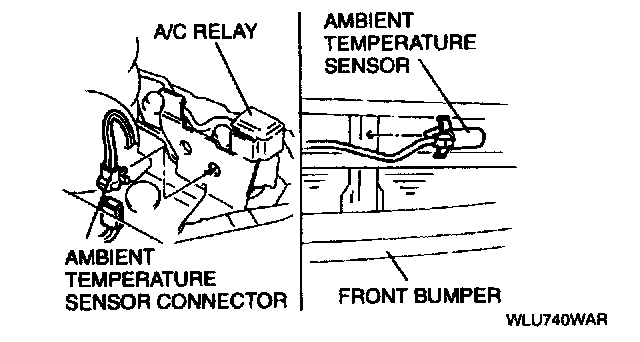

Disconnect the ambient temperature sensor connector.
4.
Remove the ambient temperature sensor harness clamp.
5.
Remove the ambient temperature sensor.
6.
Install in the reverse order of removal.
