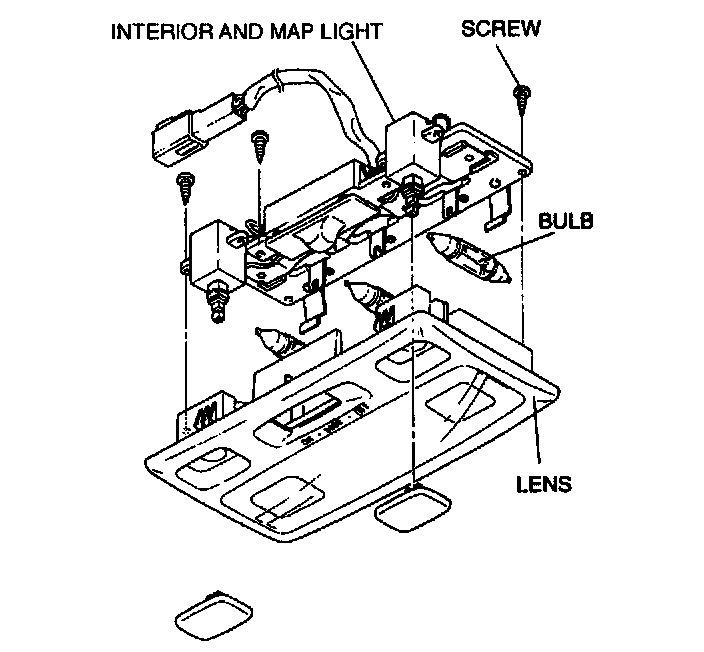

Map Light Bulb: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the interior and map light.
3. Remove the screws and the lens.

4. Remove the interior and map light bulbs.
5. Install in the reverse order of removal.
