EGR Boost Control Solenoid: Testing and Inspection

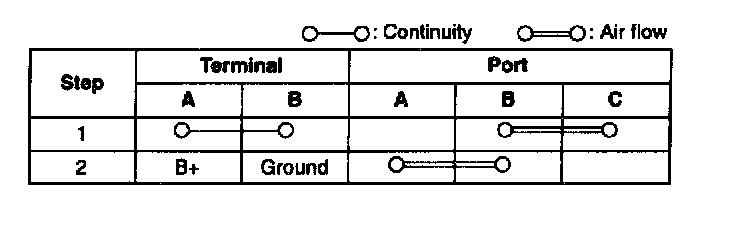

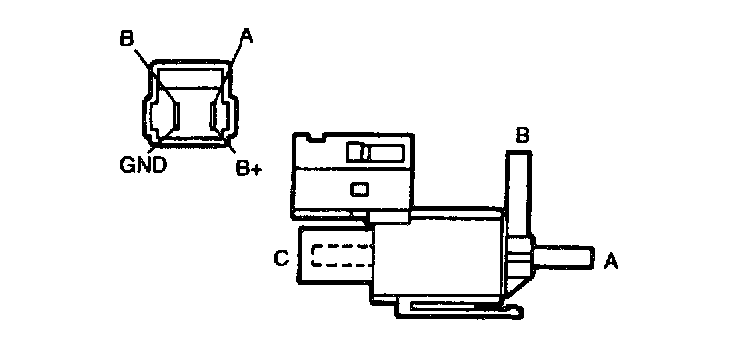

1. Inspect air flow between ports of the solenoid valve under the following condition.
- If not as specified, replace the EGR boost sensor solenoid valve.
