EGR Valve: Testing and Inspection
1.
Start the engine and let it idle.
2.

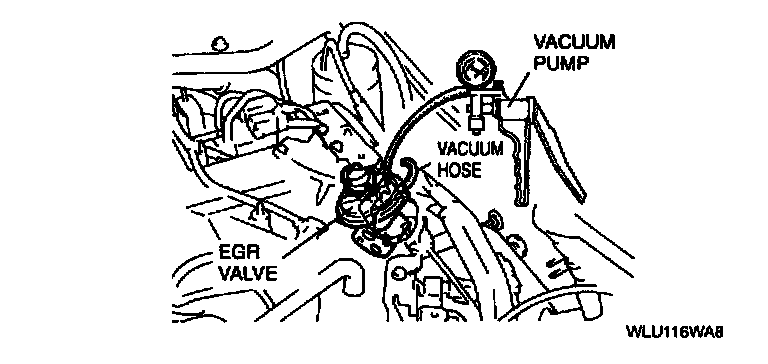

Connect a
vacuum pump as shown in the figure and apply vacuum.
3.
Verify that the engine runs roughly or stalls at more than the specified vacuum.
-
If not as specified, replace the
EGR valve.
Specification:
-12.0 - -14.7 kPa {-90 - -110 mmHg, -3.55 - -4.33 inHg}
