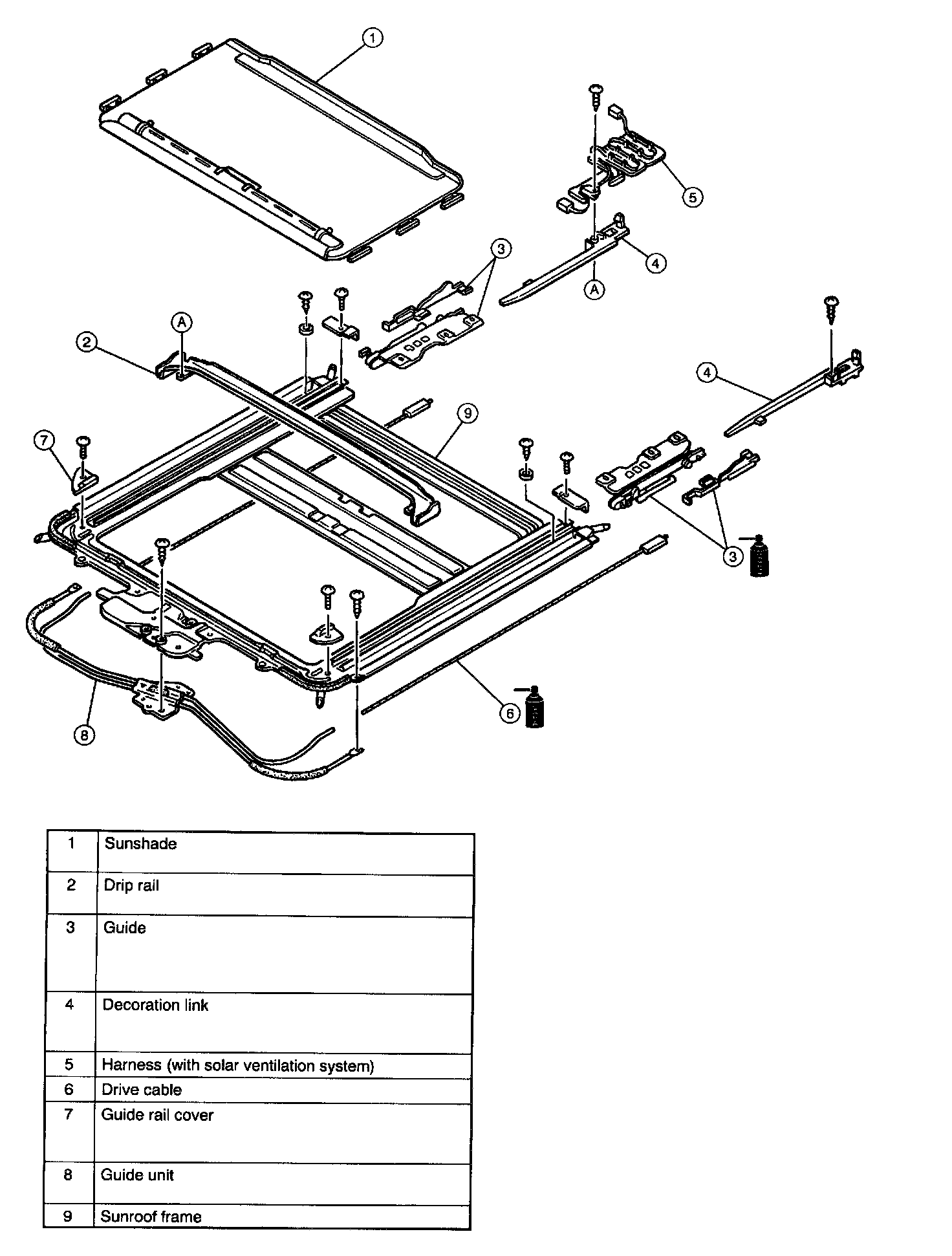

Disassembly/Assembly

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Sunshade Disassembly Note

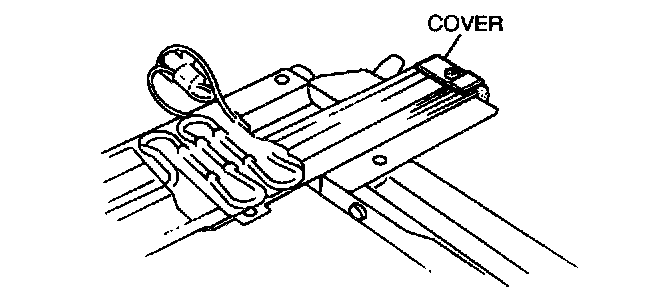

1. Remove the cover.




2. Slide the sunshade back to remove it.

Drip Rail Disassembly Note

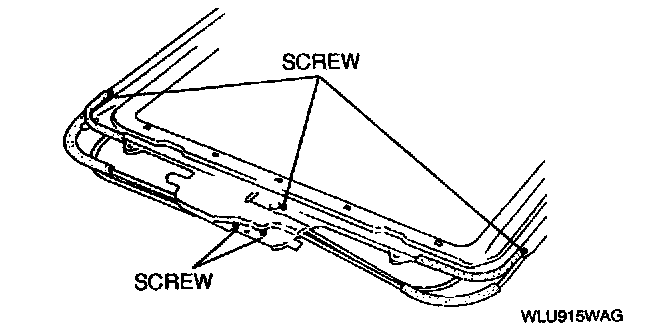

1. Remove the drip rail installation screws.

Guide Disassembly Note

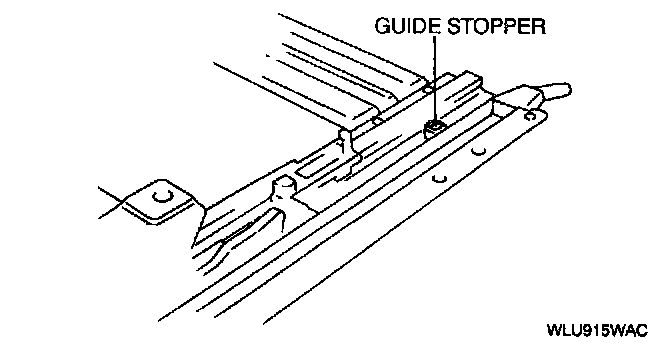

1. Remove the guide stop per.

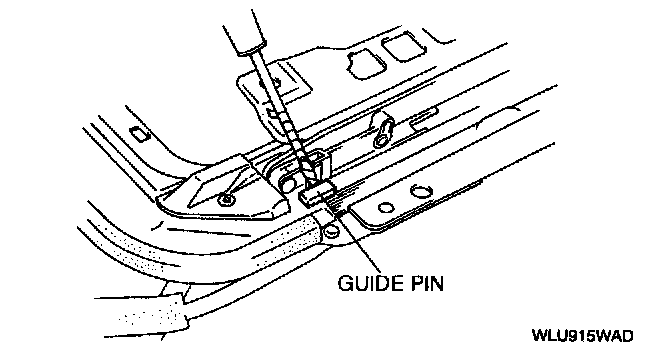

2. Remove the guide pin using a tape-wrapped flathead screwdriver.

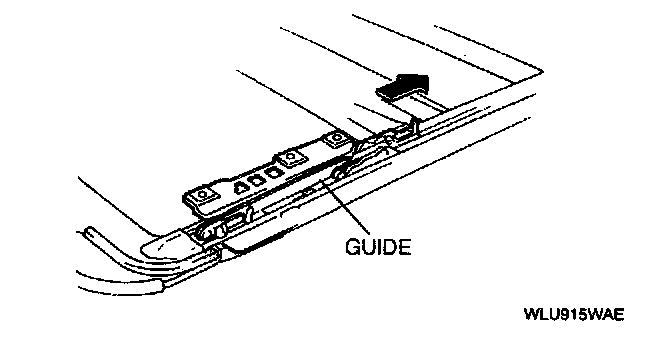

3. Slide the guide back to remove it.

Guide Rail Cover Disassembly Note

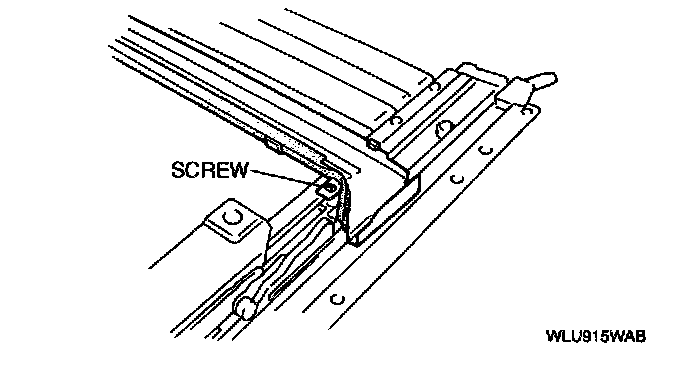

1. Remove the guide rail cover installation screw.

Guide Unit Disassembly Note




1. Remove the guide unit installation screws.

Decoration Link and Guide Assembly Note

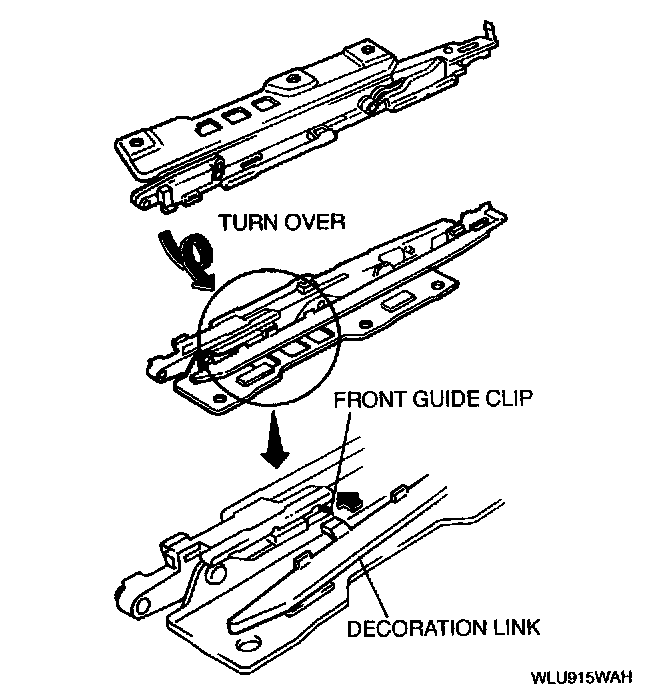

1. Set the decoration link under the front guide clip.

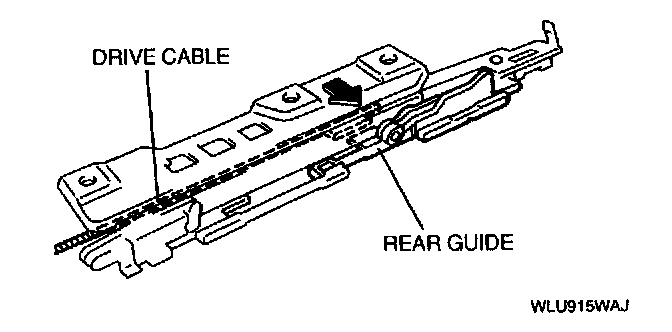

2. Set the drive cable to the rear guide.

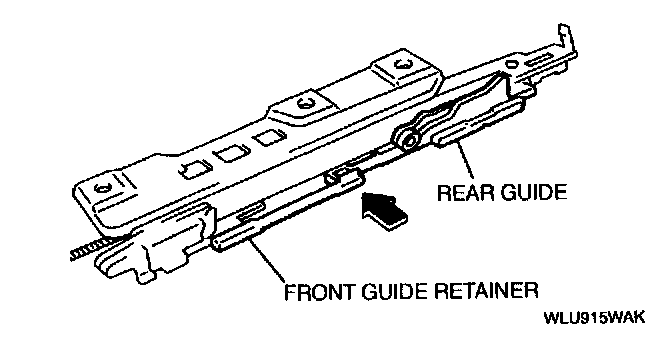

3. Set the front guide retainer to the rear guide.

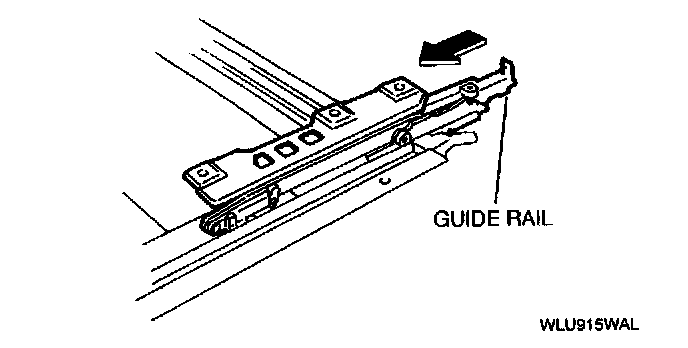

4. Insert the guide into the guide rail.
