Recharging

CAUTION: To avoid damaging the battery, do not quick charge for over 30 minutes.

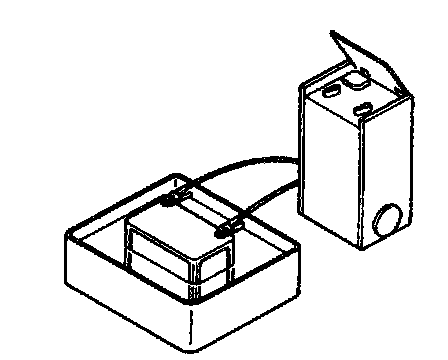

1. Remove the battery from vehicle and place it in a pan of water.

2. Connect a battery charger to the battery.

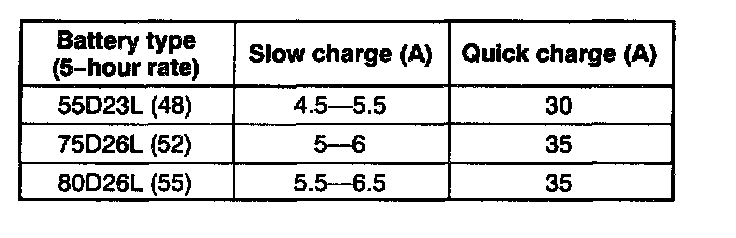

3. Adjust the charging current as follows.
4. After the battery has been recharged, measure the battery positive voltage and verify that the battery keeps specified voltage for more than 1 hour.
- If not as specified, replace the battery.

Specification
Above 12.4 V
