Shift Interlock Switch: Service and Repair

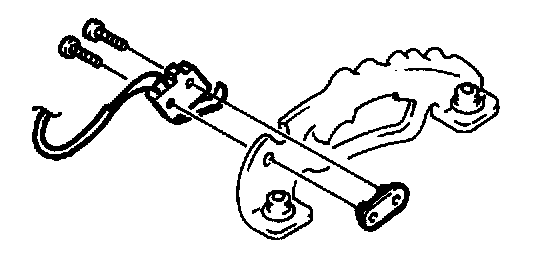

P POSITION SWITCH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.

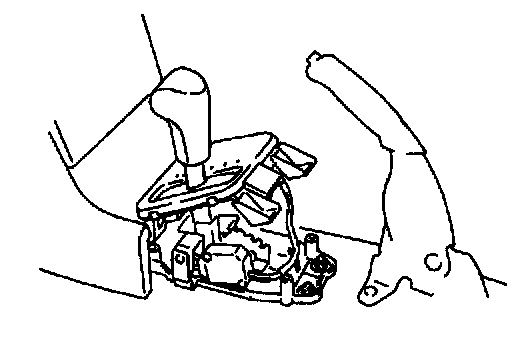

2. Remove the rear console box and center panel.





3. Remove the indicator screws and lift up the indicator panel.
4. Disconnect the connector.
5. Remove the P position switch.





6. Install the new P position switch.
7. Connect the connector.
8. Install and adjust the indicator panel.
9. Install the center panel and rear console box.
10. Connect the negative battery cable.
11. Verify correct operation of the shift-lock system.
