Transmission Temperature Sensor/Switch: Service and Repair

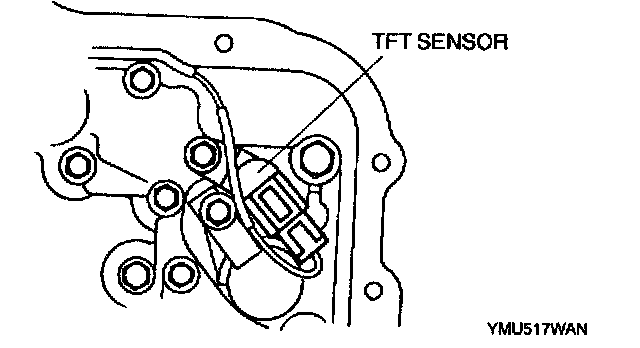

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION 1.
Remove the control valve body cover.
2.
Disconnect the TFT sensor connector.
3.
Remove the TFT sensor.
4.
Install a new TFT sensor using the SST.
Tightening torque
6.5 - 7.8 Nm (66 - 80 kgf.cm, 58 - 69 inch lbs.) 5.
Connect the TFT sensor connector.
6.
Install the control valve body cover.
