Transmission Temperature Sensor/Switch: Testing and Inspection
TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [GF4A-EL] 1.
Remove the TFT sensor.
2.

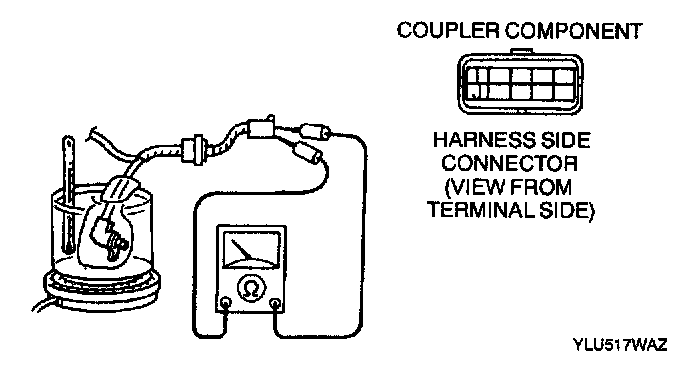

Place the TFT sensor in ATF along with a thermometer as shown, and heat the ATF gradually.
3.

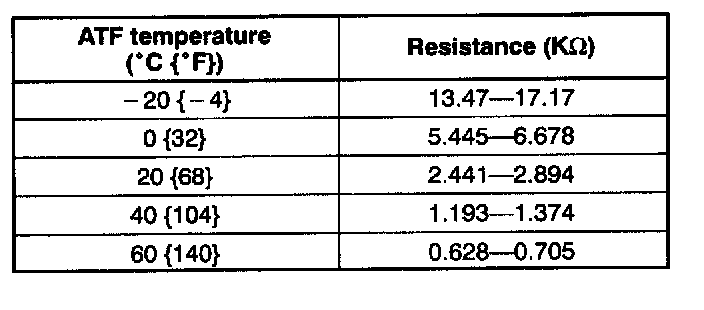

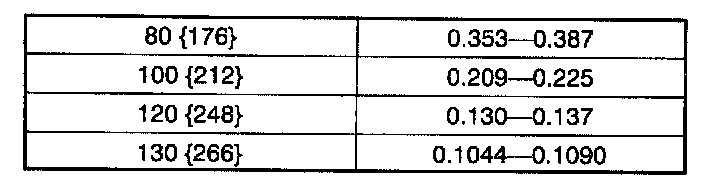

Measure the resistance between the terminals of the TFT sensor.
-
If not as specified, replace the TFT sensor.
4.
Install the TFT sensor.
