Camshaft Position Sensor: Testing and Inspection
1.
Disconnect the negative battery cable.
2.
Disconnect the CMP sensor connector.
3.

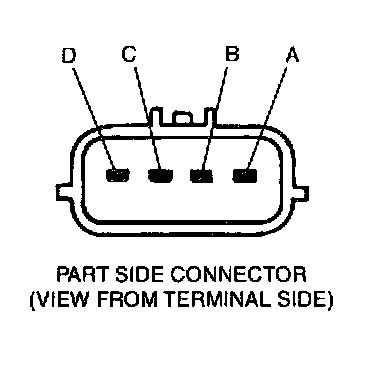

Verify the continuity between CMP sensor connector terminals B and C.
-
If they are okay, replace the CMP sensor.
-
If there is no continuity, repair the related harnesses.
