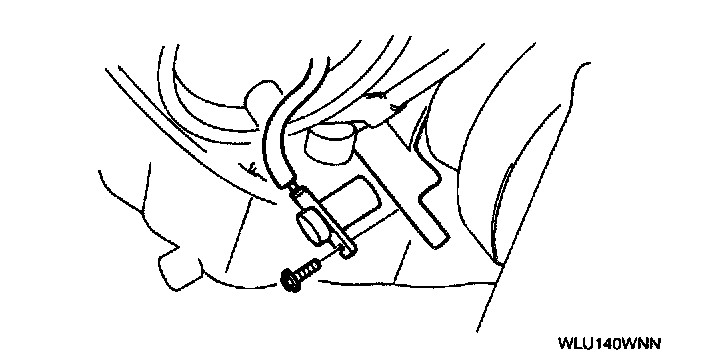

Crankshaft Position Sensor: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the CKP sensor connector.
3.
Remove the CKP sensor.
4.
Install in the reverse order of removal.
Tightening torque 7.9 - 10.7 Nm:
{80 - 110 kg.cm, 69.5 - 95.4 in.lb}
