Component Inspection
1.

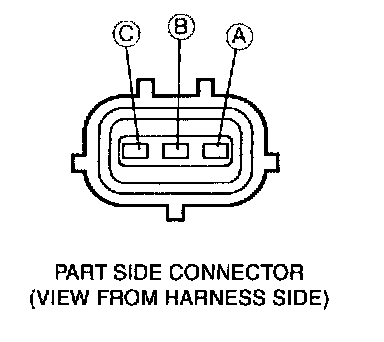

Disconnect the
EGR valve position sensor connector.
2.
Disconnect the vacuum hose from the EGR valve and connect the vacuum pump to the EGR valve.

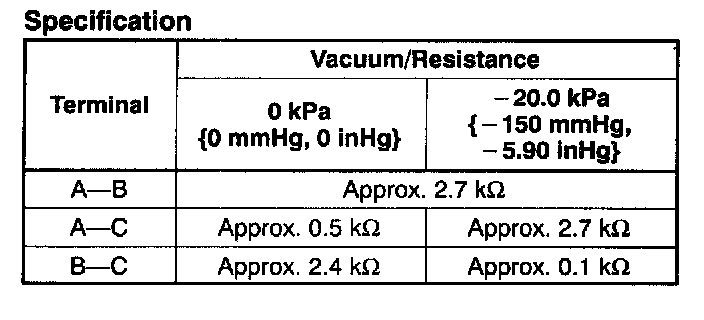

Specification:
3.
Use an ohmmeter to measure the resistance between the terminals as shown in the table.
-
If not as specified, replace the EGR valve.
