Knock Sensor: Testing and Inspection
1.
Verify that the
ignition switch is off.
2.
Disconnect the
knock sensor connector.
3.

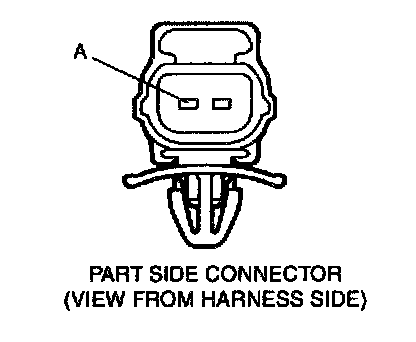

Measure the resistance between
knock sensor terminal A and the knock sensor body using an ohmmeter.
-
If not as specified, replace the
knock sensor.
Specification: Approx.
560 KOhms [20 °C {68 °F}]
