At Serial Communication Terminal (PCM-TCM) Inspection

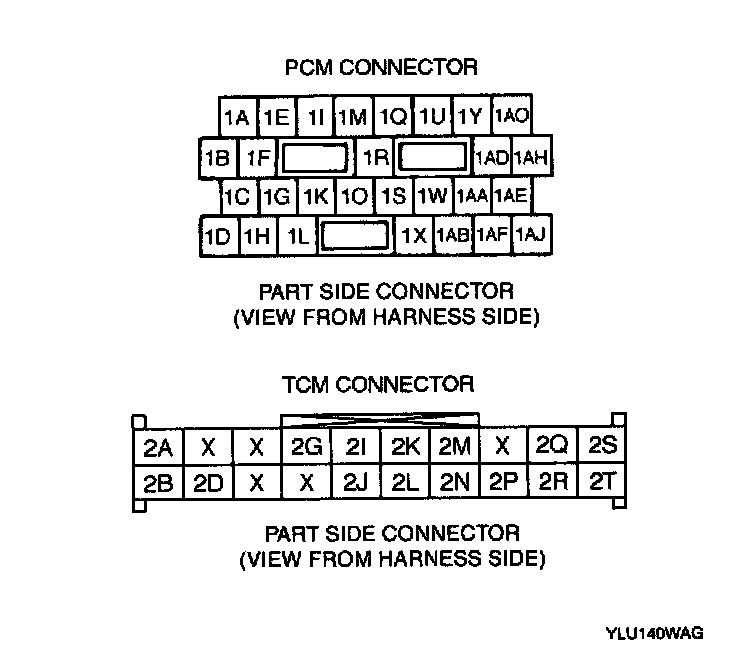

1. Disconnect the PCM connector and TCM connector.




2. Verify the continuity between PCM connector terminal 1B and TCM connector terminal 2K and between PCM connector terminal 1F and TCM connector terminal 2N.
- If it is not normal, repair the related harnesses.
