Using SST (NGS Tester)

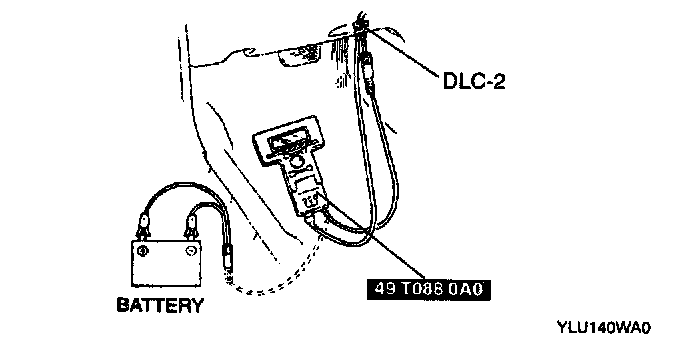

1. In the passenger compartment, connect the SST (NGS tester) to the DLC-2 as shown.

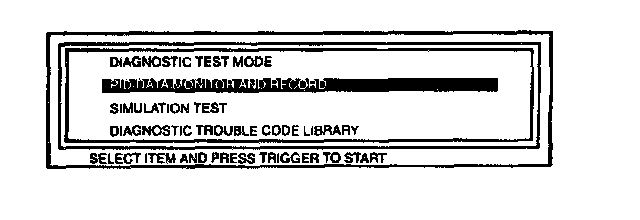

2. Referring to the NGS instruction manual, select the "PID/DATA MONITOR AND RECORD" and press TRIGGER.

NOTE: The "PID/DATA MONITOR AND RECORD" function is to monitor the calculation value of input/output signals in the PCM. Deviation in the value does not always indicate malfunction in the related input/output devices (sensors and solenoids).

3. Press CLEAR to clear previously selected items. (A list of item descriptions appears on the screen.)
4. Select necessary items and press START.
5. Carry out inspection referring to PID/DATA MONITOR table.
- If normal output signal cannot be detected when all input signals are normal, replace the PCM.

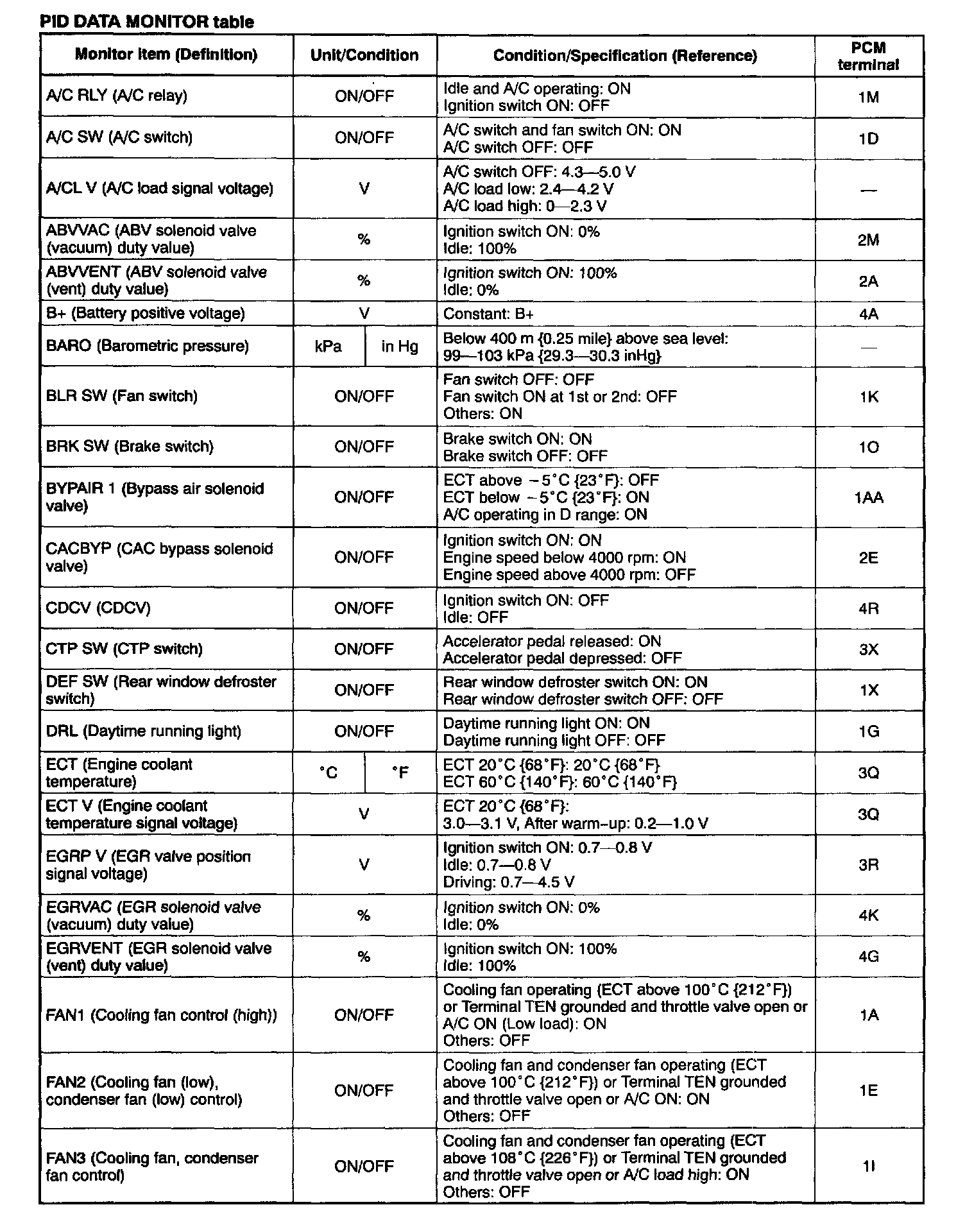

PID Data Monitor Table (Part 1 Of 4):

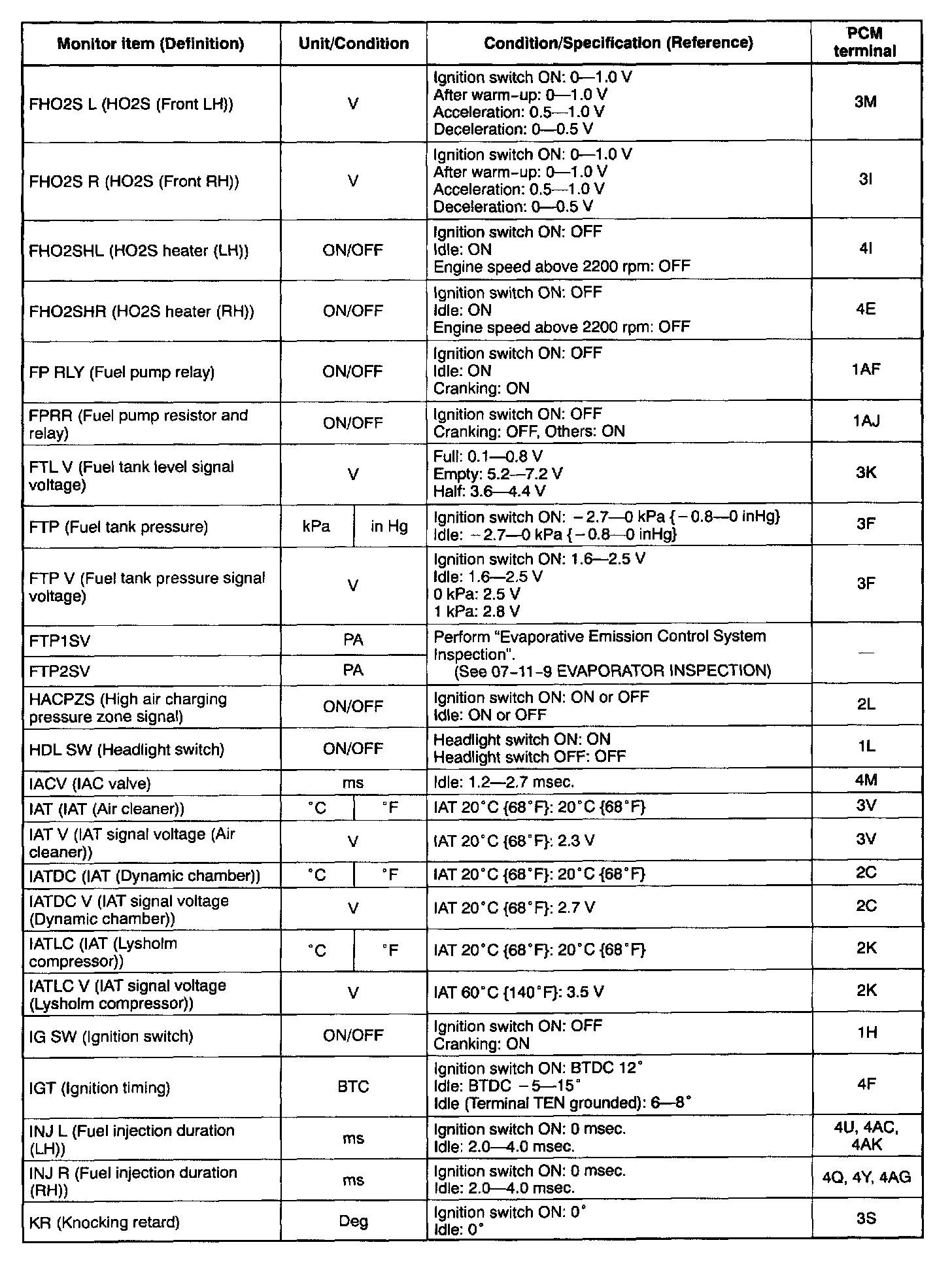

PID Data Monitor Table (Part 2 Of 4):

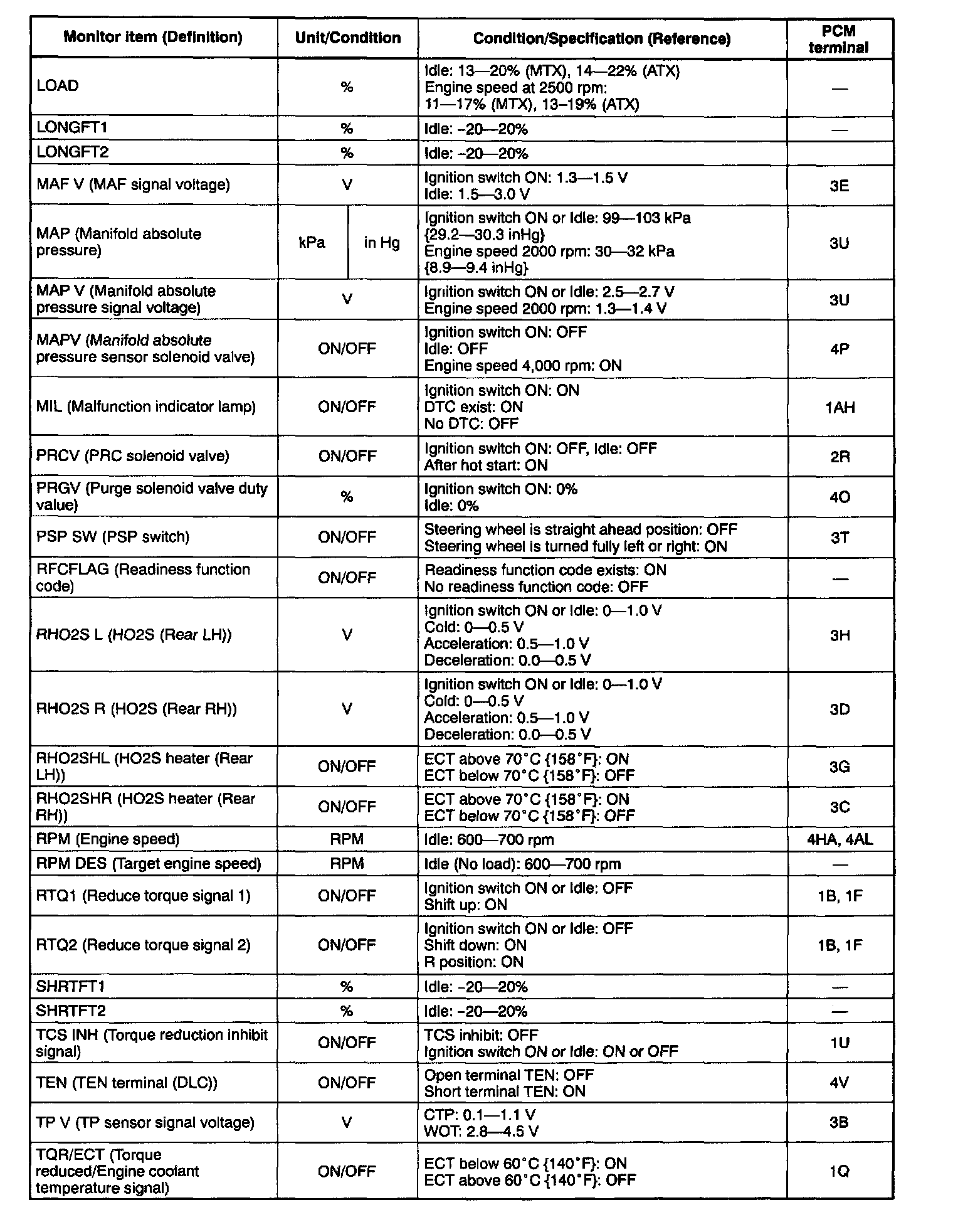

PID Data Monitor Table (Part 3 Of 4):

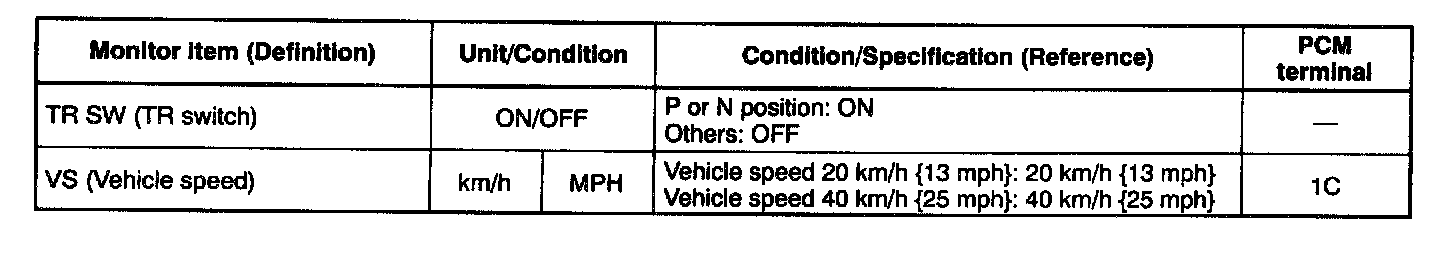

PID Data Monitor Table (Part 4 Of 4):

PID/DATA MONITOR table
