Ignition Coil: Service and Repair
1.
Disconnect the negative battery cable.
2.

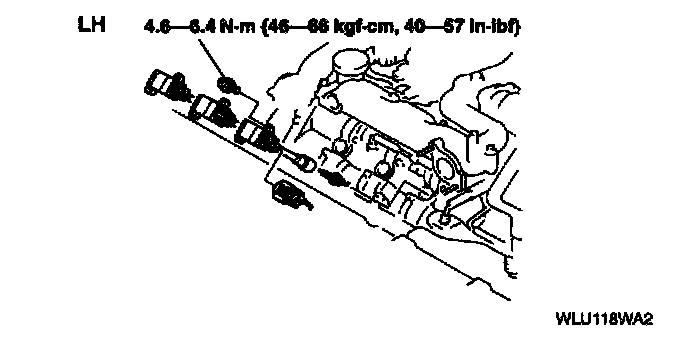

LH: Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)

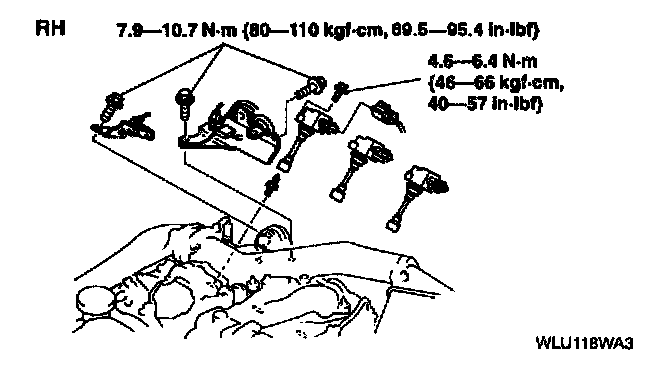

RH: Remove the
solenoid bracket component.
3.
Disconnect the
ignition coil 4-pin connector.
4.
Remove the
ignition coil.
5.
Install in the reverse order of removal.
