Ignition System Inspection
1.
Remove the
fuel pump relay from main fuse block.
2.
Inspect condition of connector and
ignition coil.
3.

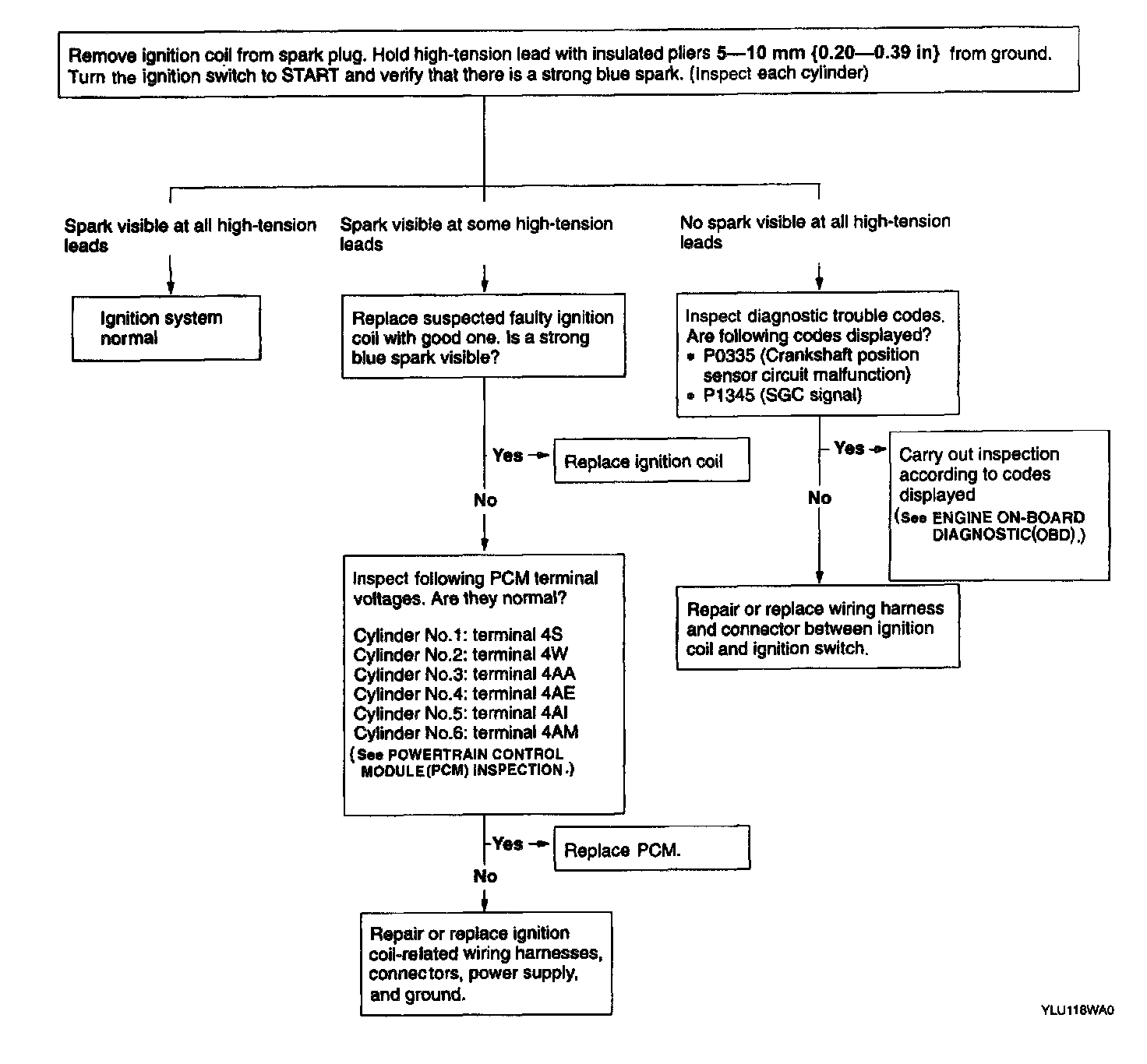

Inspect the
ignition system according to the procedure.
WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact with the vehicle body during the following spark test.
