TRANSAXLE CONTROL MODULE (TCM) INSPECTION [LJ4A-EL]

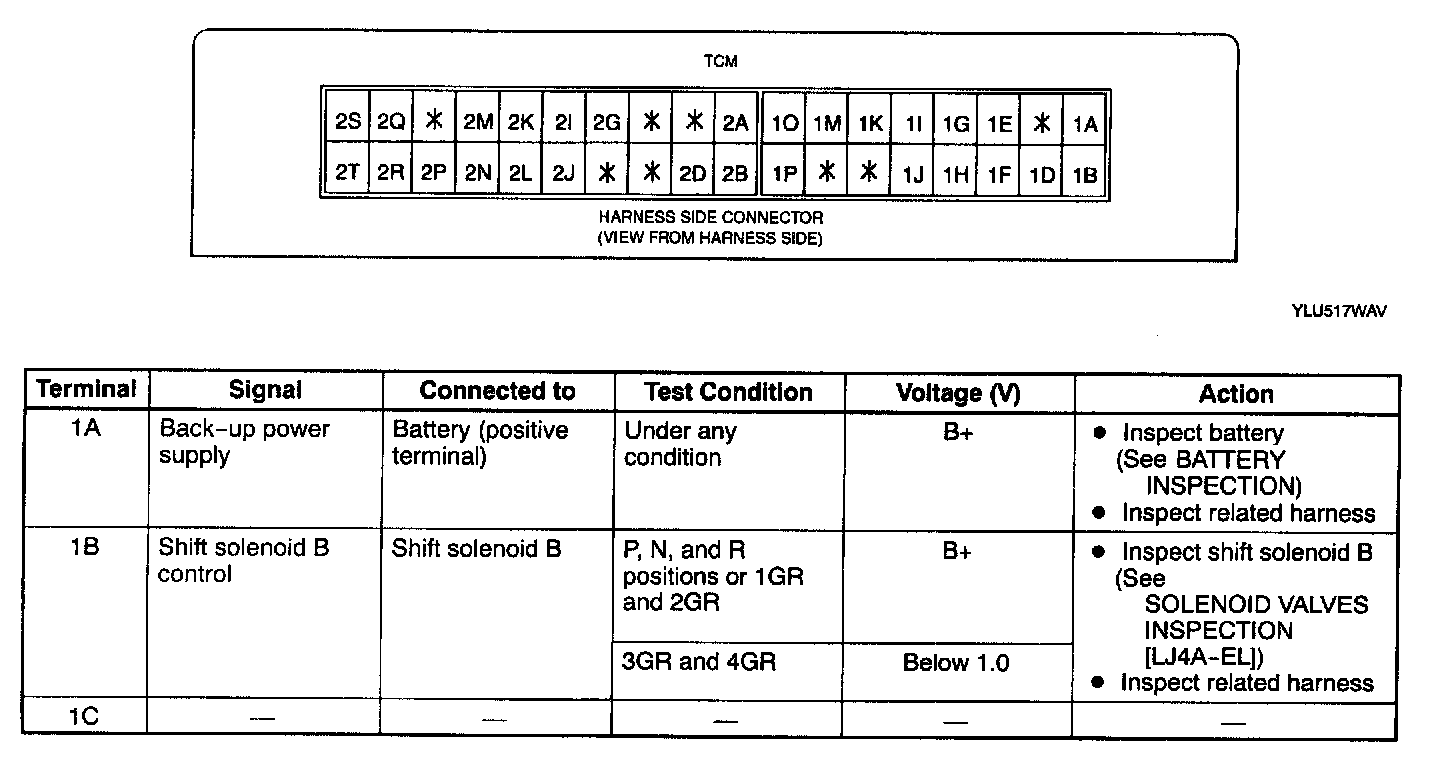

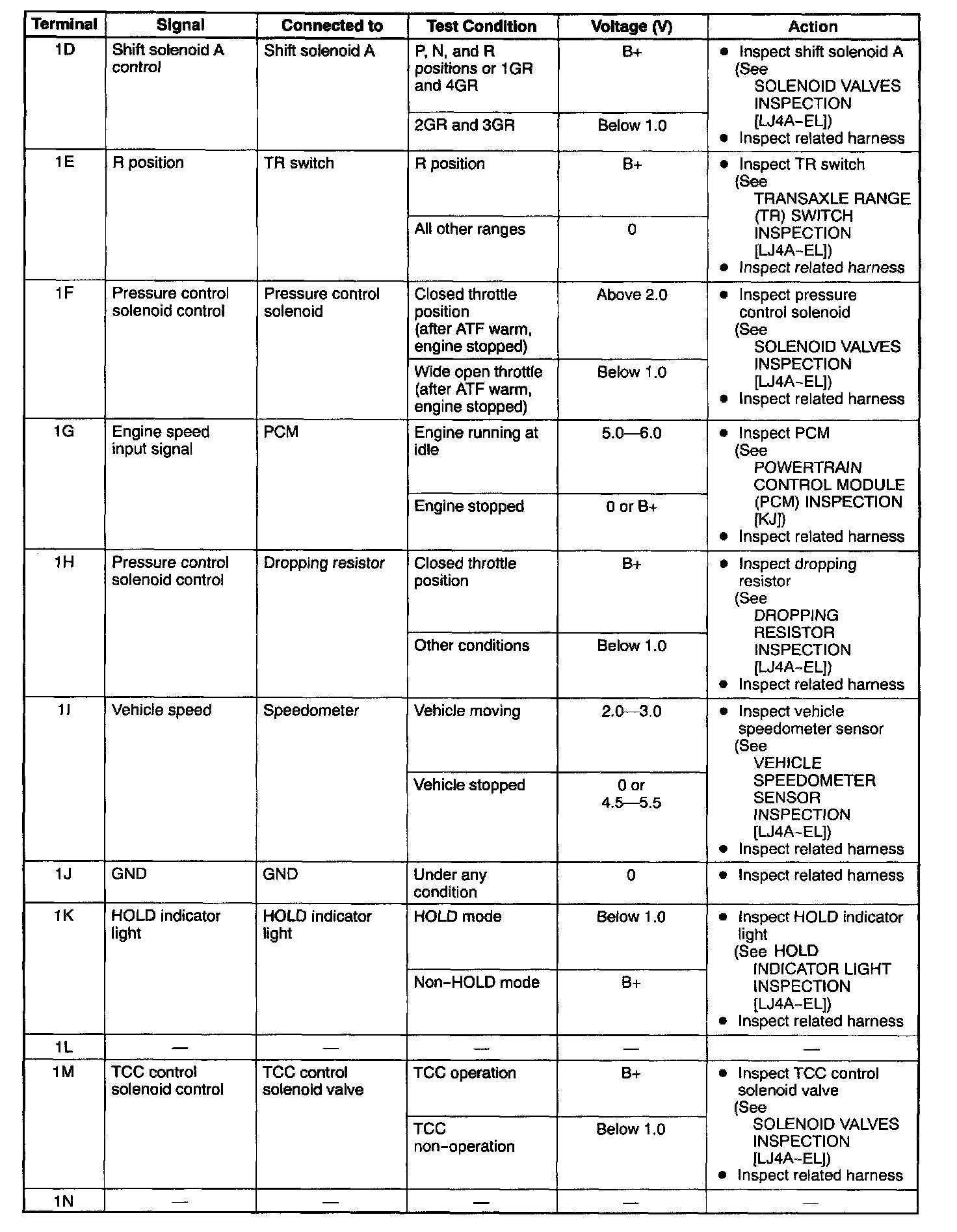

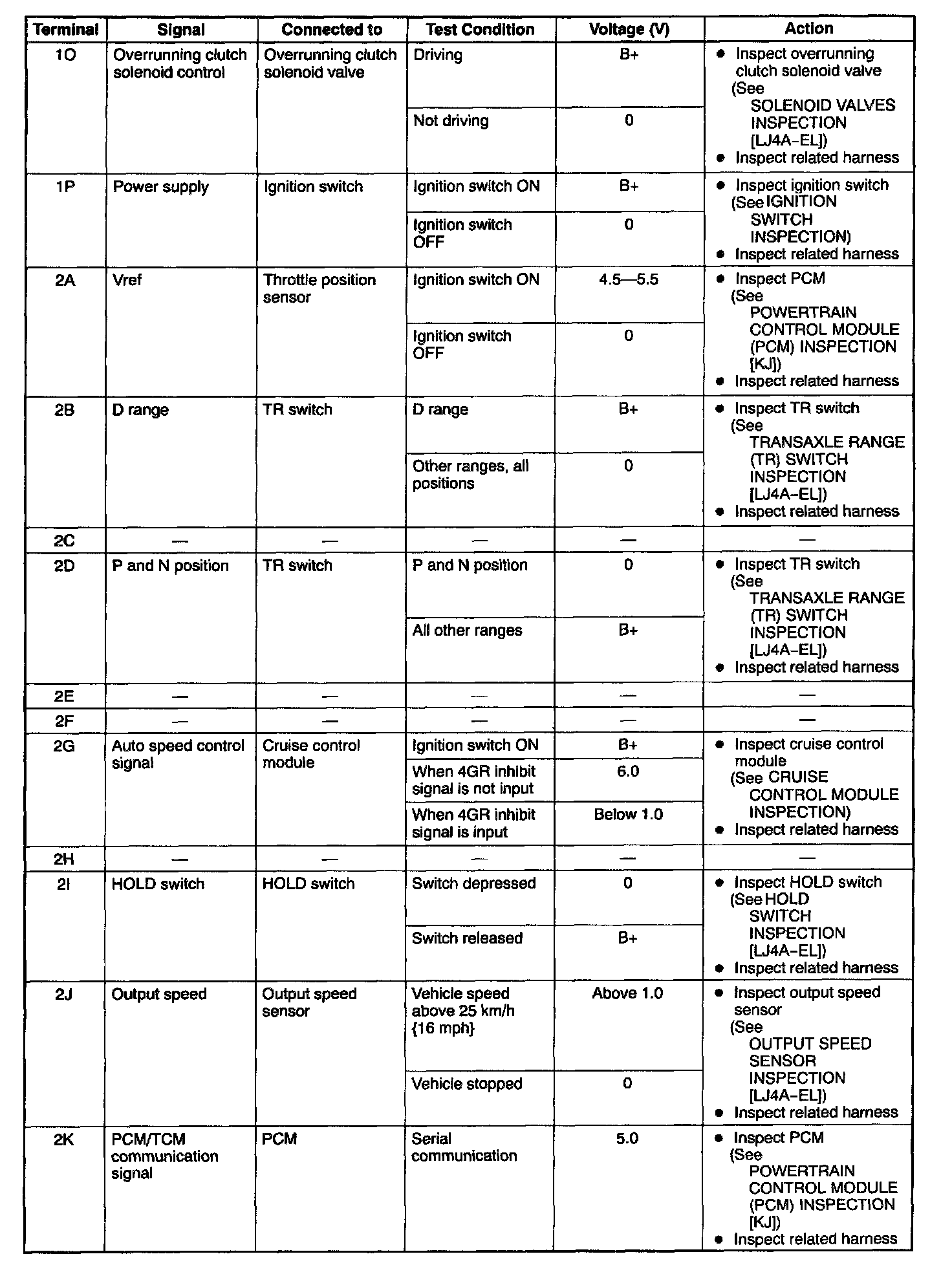

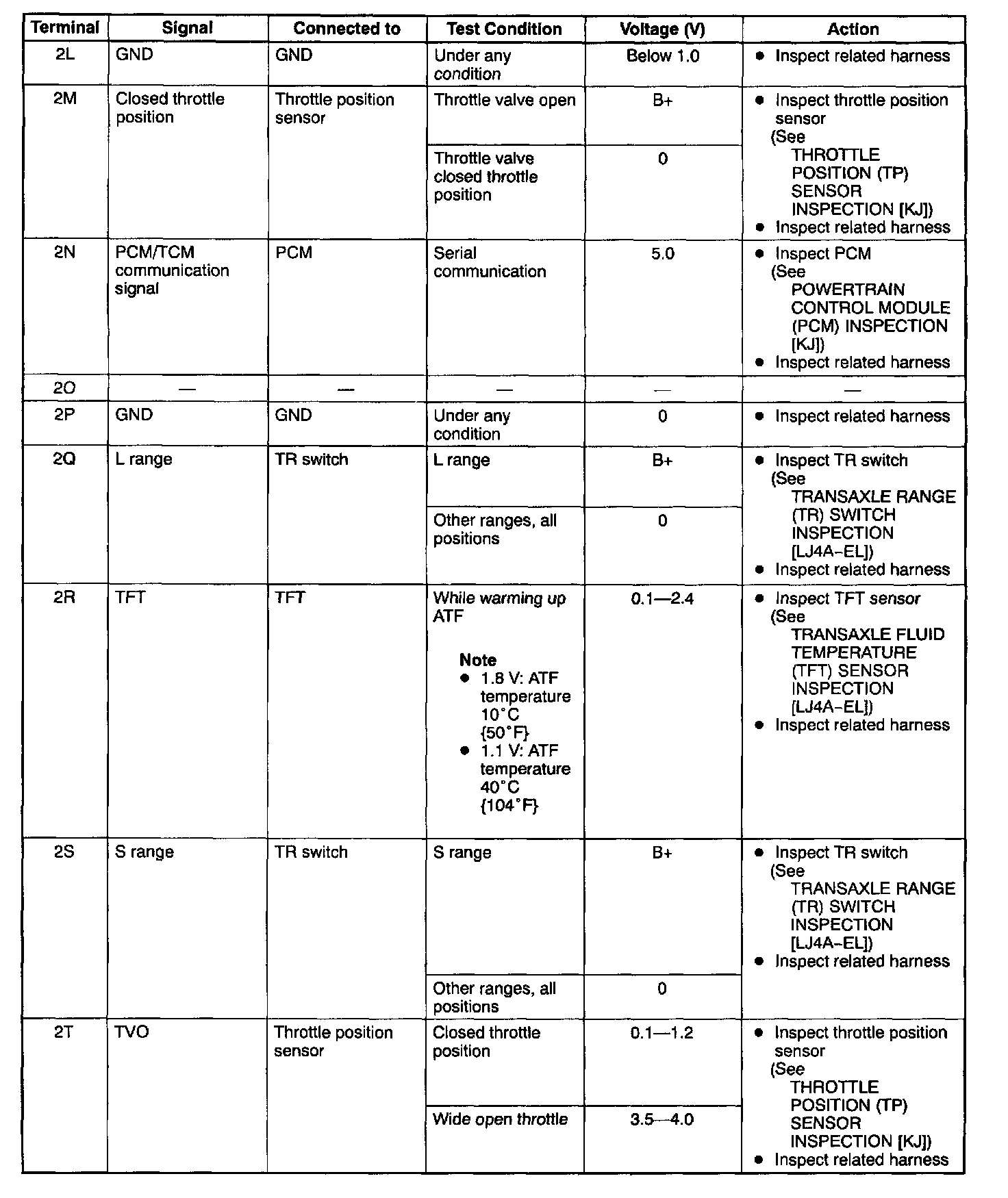

Terminal Voltage Chart (Reference Data)














Note Use the ground of terminal 1J of the TCM when measuring terminal voltage, as an error may occur when connecting the negative circuit tester to ground.
