Door Lock Switch
1.
Disconnect the negative battery cable.
2.

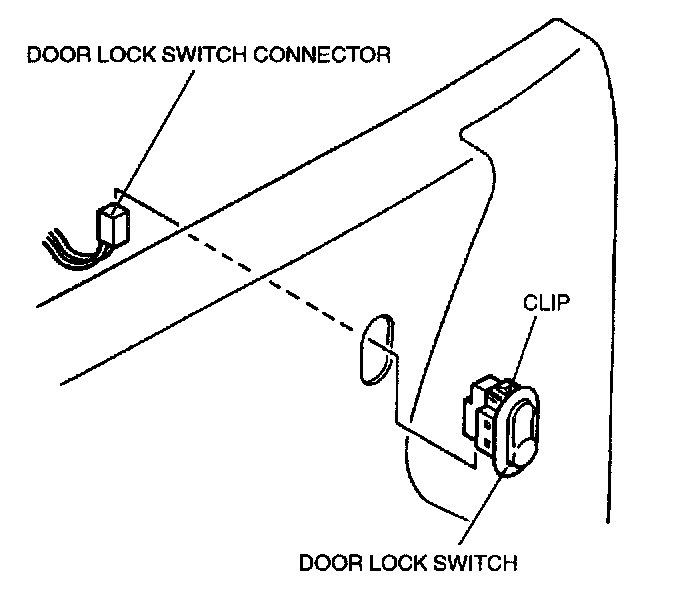

Insert a tape-wrapped flathead screwdriver between the front door trim and the door lock switch and push the clip to remove the door lock switch.
3.
Disconnect the door lock switch connector.
4.
Install in the reverse order of removal.
-
If not as specified, replace the door key cylinder switch.
