Removal/Installation

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the dashboard.
4. Remove the cooling unit.

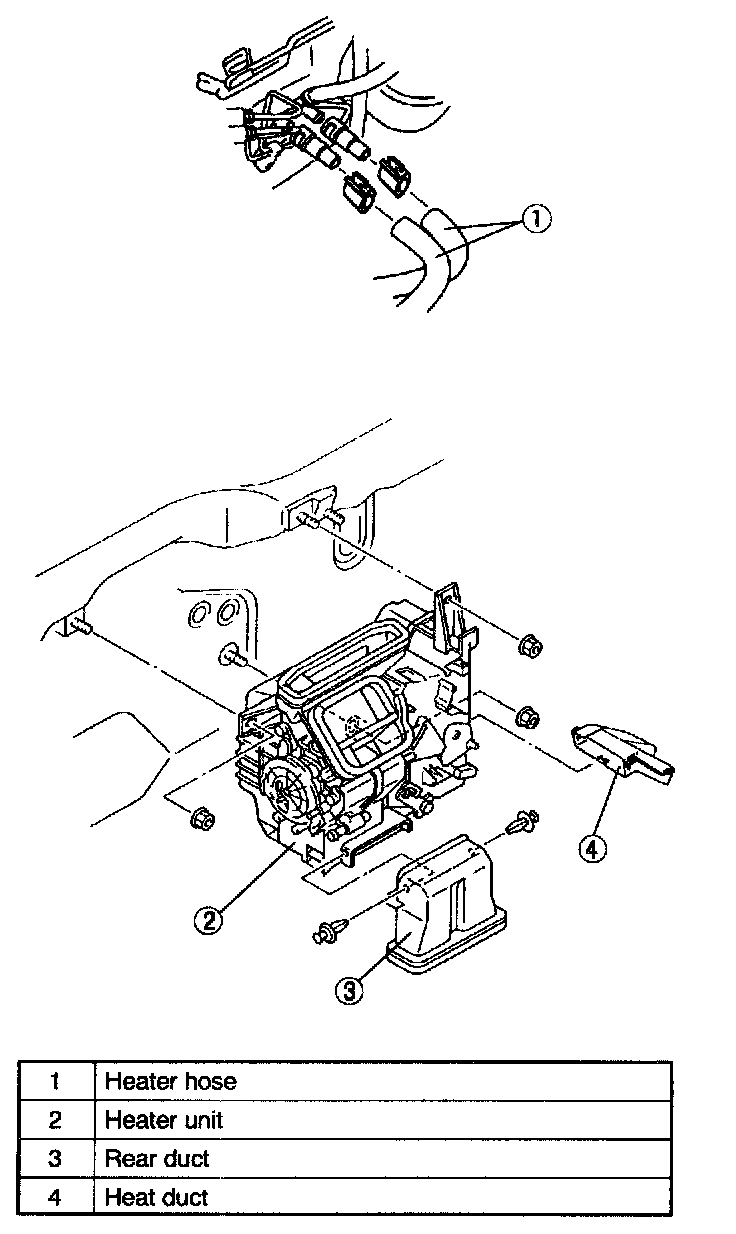

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
