Drive Belt: Testing and Inspection

DRIVE BELT INSPECTION [ZM]
Drive Belt Deflection Inspection

Note: Inspect the drive belt deflection when the engine is cold, or at least 30 minutes after the engine has been stopped.

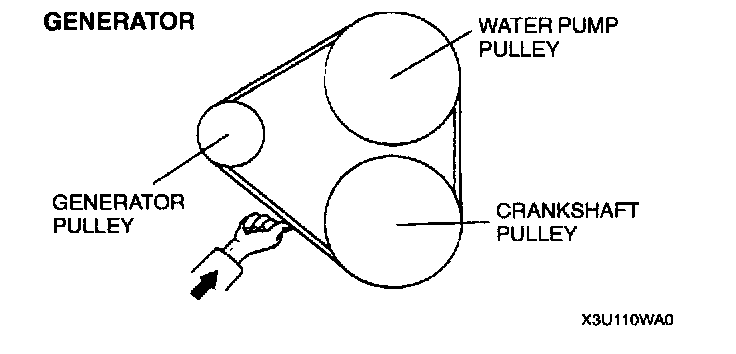

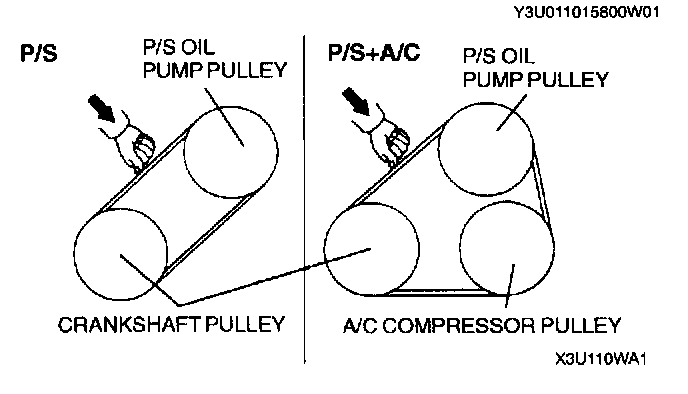

1. Apply moderate pressure 98 N (10 kgf, 22 lbs.) midway between the specified pulleys. If the deflection exceeds the limit, adjust it.

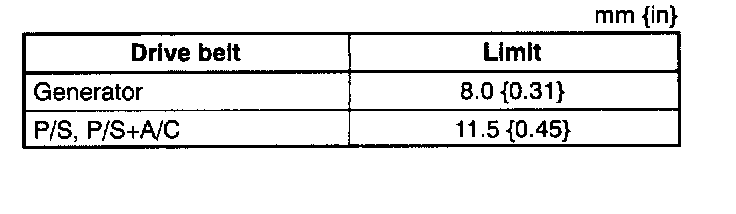

Deflection

Drive Belt Tension Inspection

Note: Belt tension can be inspected in place of belt deflection. Inspect the drive belt tension when the engine is cold, or at least 30 minutes after the engine has been stopped.

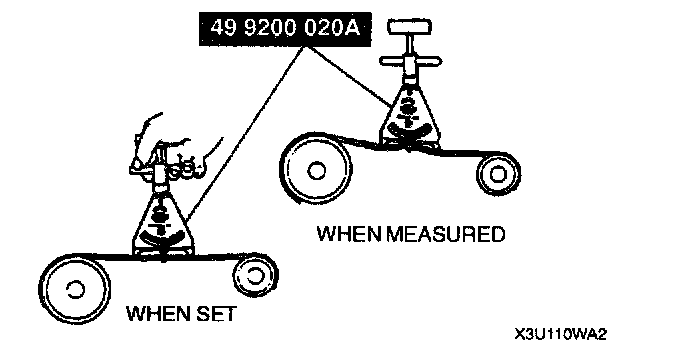

1. Using the SST, inspect the belt tension between any two pulleys.
- If the tension exceeds the limit, adjust it.

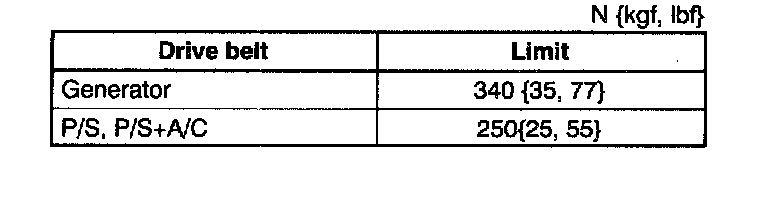

Tension
