Fluid - M/T: Testing and Inspection

TRANSAXLE OIL INSPECTION

Note: Park the vehicle on level ground.

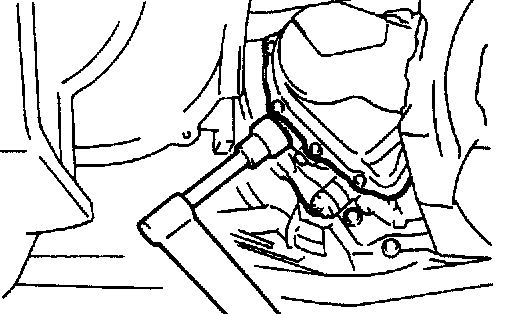

1. Remove the oil level plug and the washer.

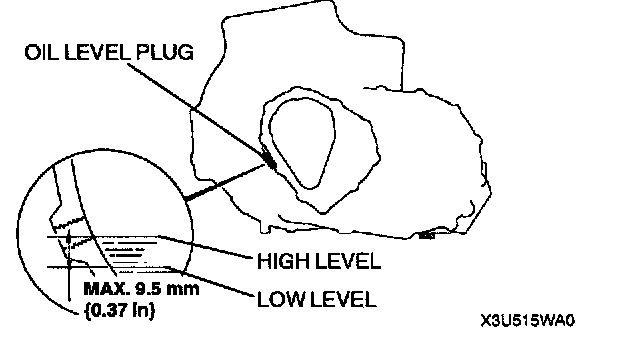

2. Verify that the oil is near the bottom of the plug port within the range shown in the figure.
- If the oil level is low, add the specified type of oil to the bottom of the plug port through the oil level plug hole.
Specified oil
Grade: API service GL-4 or GL-5
Viscosity: SAE 75W-90 (All season) or SAE 80W - 90 (Above 10° C (50° F))





3. Install a new washer and the oil level plug.
Tightening torque
40 - 58 Nm (4.0 - 6.0 kgf.m, 29 - 43 ft. lbs.)
