Engine Mechanical Component Tests

1. Verify air intake hoses are installed properly.
2. Start the engine and run it at idle.

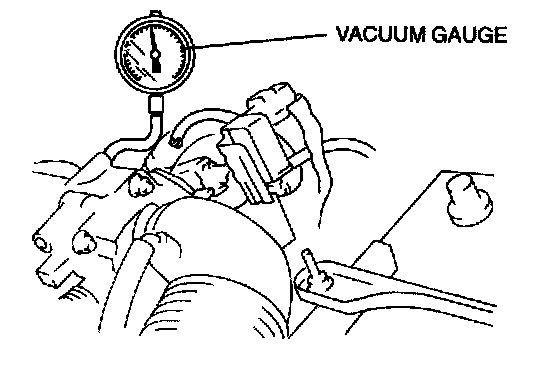

3. Measure the intake manifold vacuum using a vacuum gauge.
- If not as specified, inspect the following:
- Air suction at throttle body, intake manifold and PCV valve installation points
- Fuel injector insulator
- Accelerator cable free play
- Engine compression

Specification: More than 60 kPa {450 mmHg, 18 inHg}

NOTE: Air suction can be located by engine speed change when lubricant is sprayed on the area where suction is occurring.
