Valve Cover

TIGHTENING SEQUENCE/SPECIFICATIONS

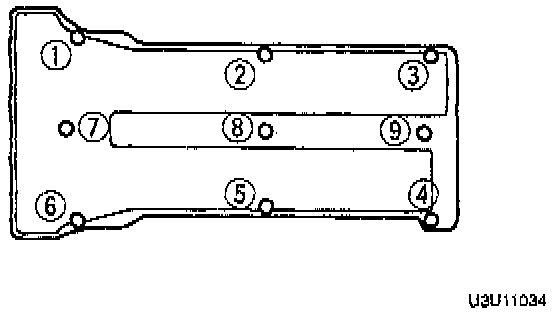

- Install the cylinder head cover and tighten the bolts in five or six steps in the order shown to achieve a final torque of 6.9-10.7 Nm (60.8-95.4 in. lbs.).
