Shift Interlock: Testing and Inspection
INTERLOCK CABLE INSPECTION 1.
Remove the interlock cable and lock unit.
-

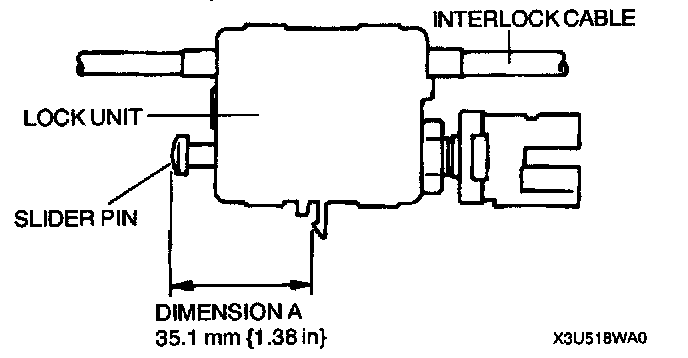

If the slider pin protrusion is as specified below (dimension A), verify that the interlock cable moves freely in the lock unit.
-
If not as specified, replace the interlock cable.
2.
Install the interlock cable and lock unit.
