Transmission Speed Sensor: Testing and Inspection

INPUT/TURBINE SPEED SENSOR INSPECTION

Note: Input signals of the input/turbine speed sensor can be inspected with a NGS tester.

Resistance Inspection
1. Disconnect the negative battery cable.
2. Remove the air cleaner component.

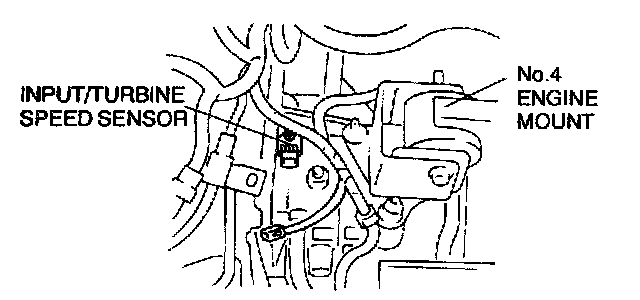

3. Disconnect the input/turbine speed sensor

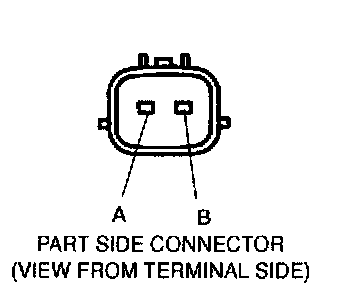

4. Measure the resistance between the terminals of the input/turbine speed sensor.
- If not as specified, replace the input/turbine speed sensor.
Resistance
250 - 600 ohms (ATF temperature: -40 - 160° C (-40 - 320° F))
5. Connect the input/turbine speed sensor connector.
6. Install the air cleaner component.
7. Connect the negative battery cable.
