Transmission Temperature Sensor/Switch: Testing and Inspection

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION
1. Disconnect the negative battery cable.
2. Remove the fresh-air duct and air cleaner component.

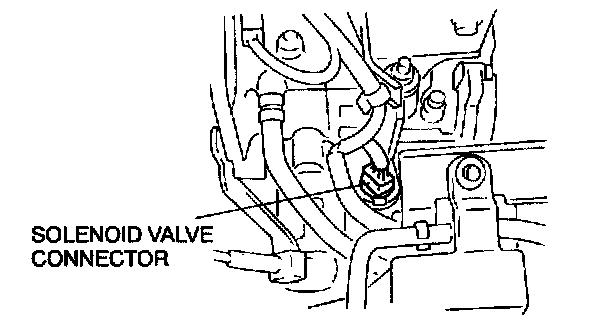

3. Disconnect the solenoid valve connector.

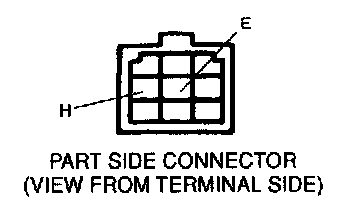

4. Measure the resistance between the terminals E and H.

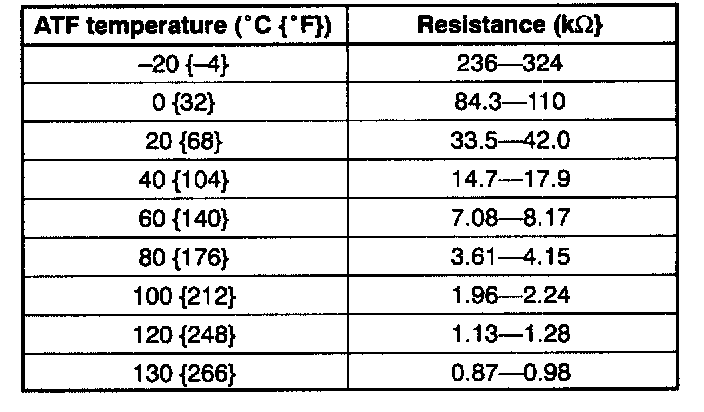

- If it is out of specifications, replace the TFT sensor.
5. Connect the solenoid valve connector.
6. Install the air cleaner component and fresh-air duct.
7. Connect the negative battery cable.
