Cowl: Service and Repair

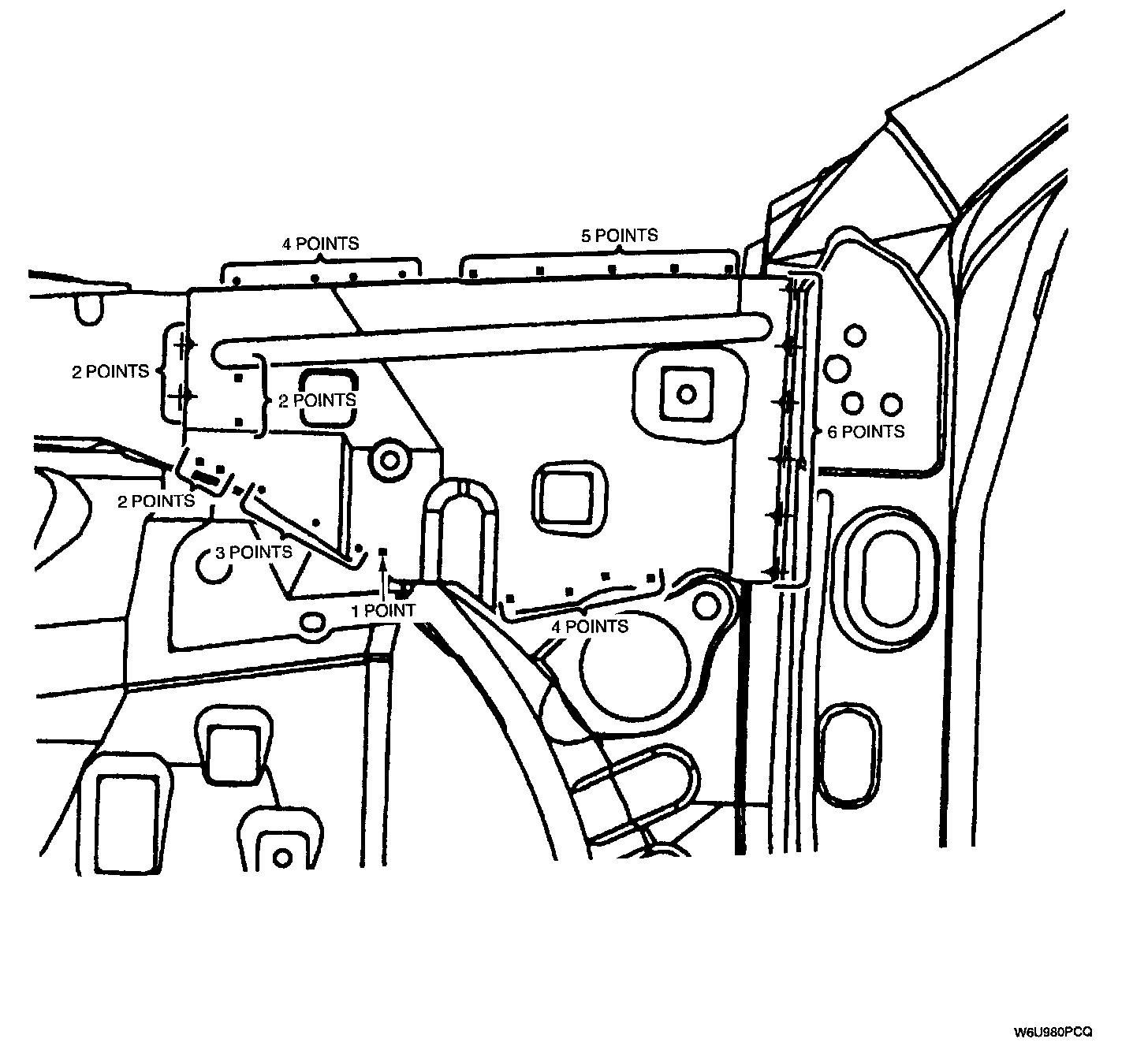

COWL SIDE REINFORCEMENT REMOVAL -
Sand the CO(2) arc welding location by using a disk grinder to remove the panel.

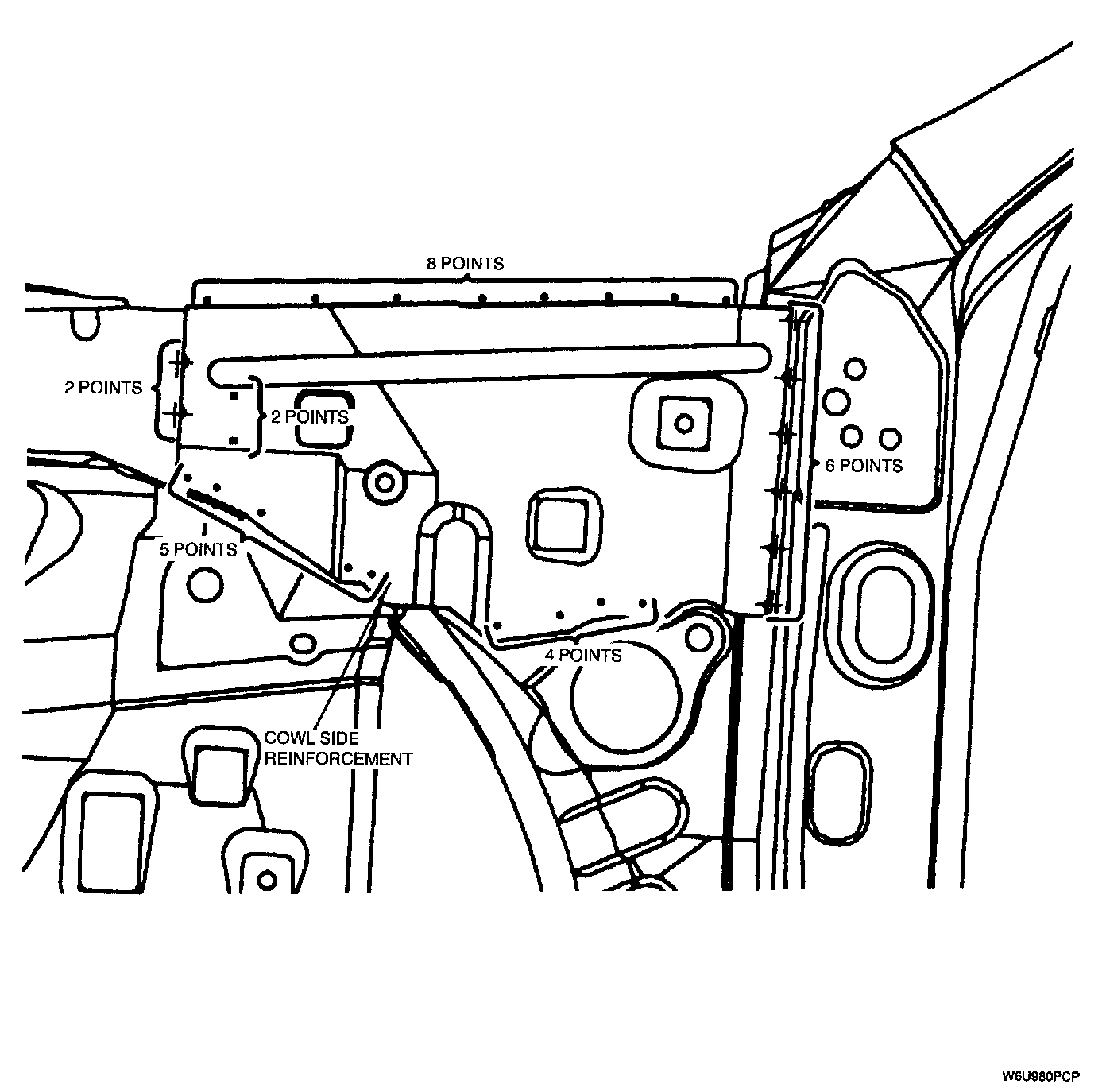

COWL SIDE REINFORCEMENT INSTALLATION -
Make holes in the new parts CO(2) arc welding and install the new parts.
