Rear Seat

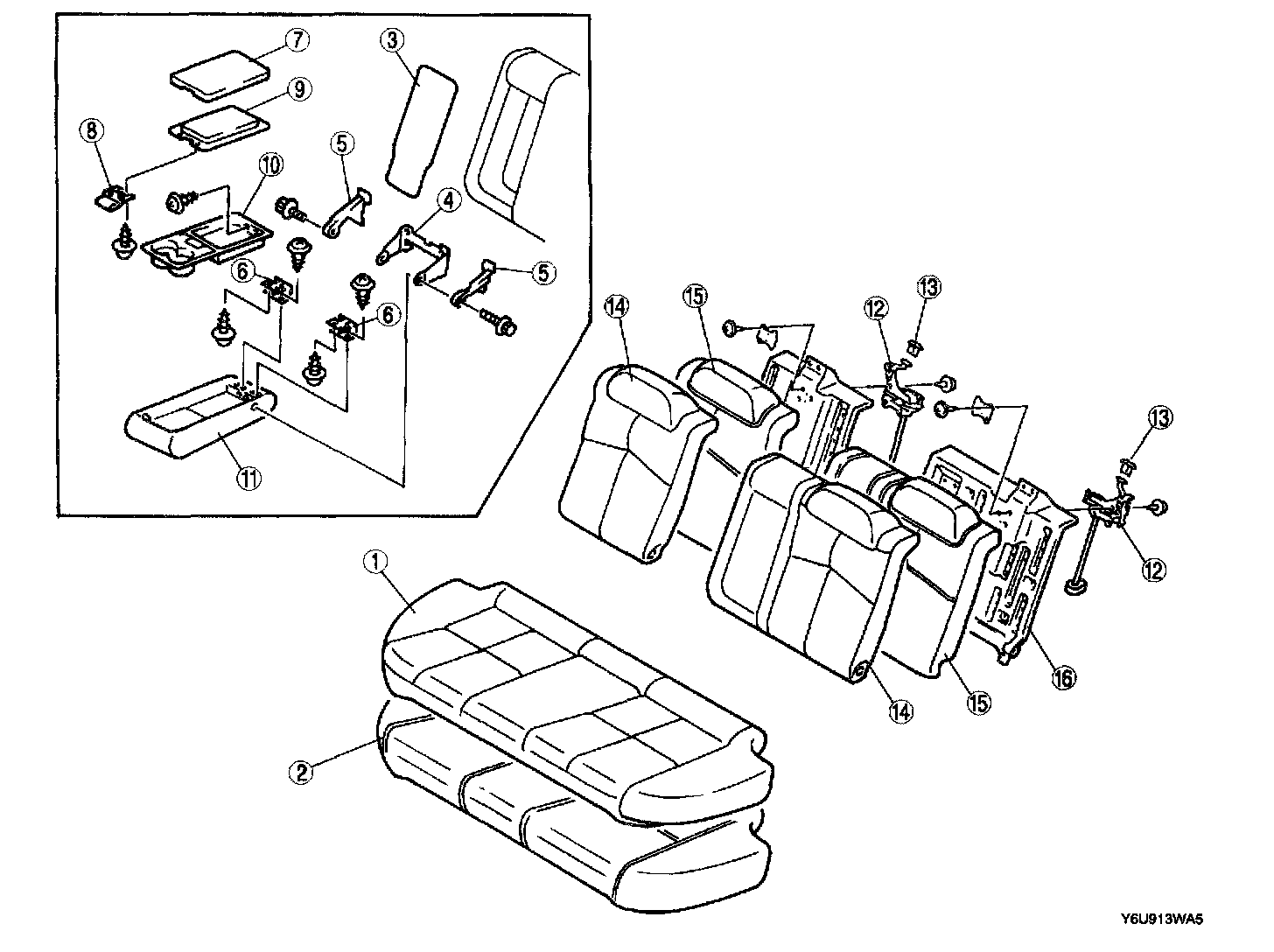

1. Disassemble in the order as indicated below.
1. Rear seat cushion trim
2. Rear seat cushion pad
3. Cover
4. Armrest bracket
5. Bracket cover
6. Armrest hinge
7. Armrest lid
8. Armrest lid lock
9. Armrest lid inner
10. Armrest inner
11. Armrest trim
12. Rear seat back catch lock
13. Rear seat back catch knob
14. Rear seat back trim
15. Rear seat back pad
16. Rear seat back frame

2. Assemble in the reverse order of disassembly.
