Blower Motor Relay: Service and Repair
BLOWER RELAY REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the nuts to move the main fuse block to the side.
3.

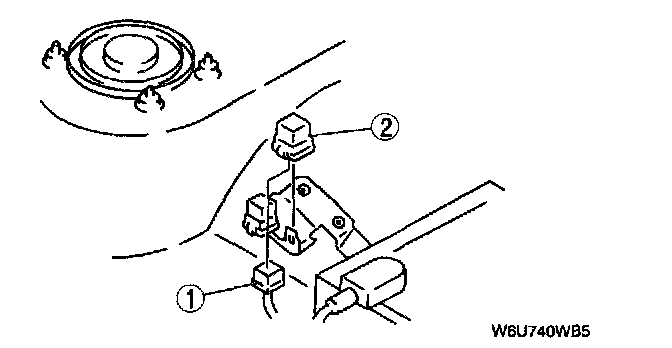

Remove in the order as indicated below.
1.
Connector
2.
Blower relay 4.
Install in the reverse order of removal.
