Compressor Clutch Relay: Testing and Inspection

A/C RELAY, BLOWER RELAY, AND CONDENSER FAN RELAY INSPECTION

1. Remove the relay.

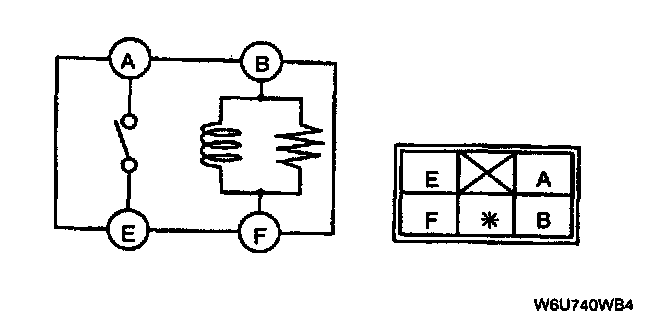

2. Check for continuity between the relay terminals by using an ohmmeter.
- If not as specified, replace the relay.
