Refrigerant Pressure Sensor / Switch: Testing and Inspection
REFRIGERANT PRESSURE SWITCH INSPECTION 1.
Install the manifold gauge set.
2.
Disconnect the refrigerant pressure switch connector.
3.

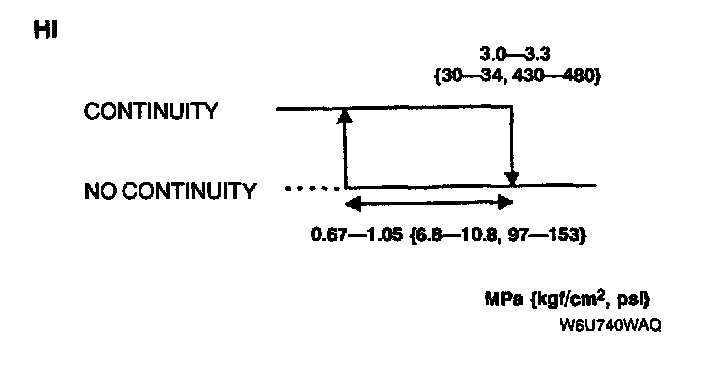

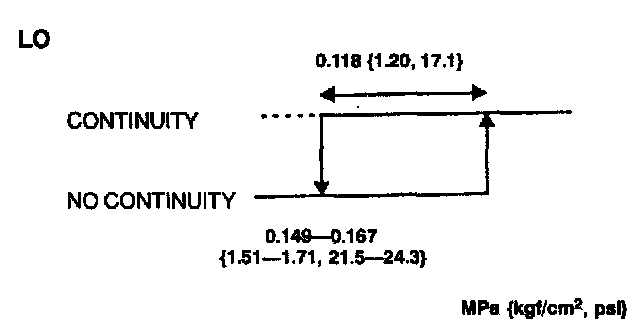

Verify the high- and low-pressure side reading of manifold gauge.
4.

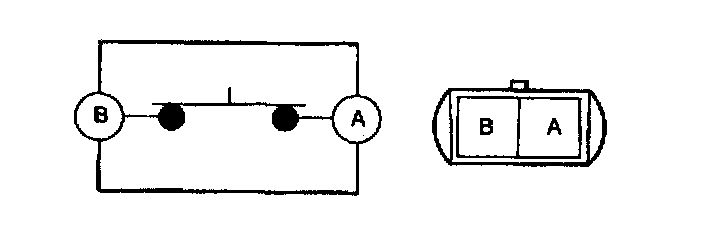

Check for continuity between terminals of the refrigerant pressure switch.
-
If not as specified, replace the refrigerant pressure switch.
