Dimmer Switch: Service and Repair

PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the meter hood.

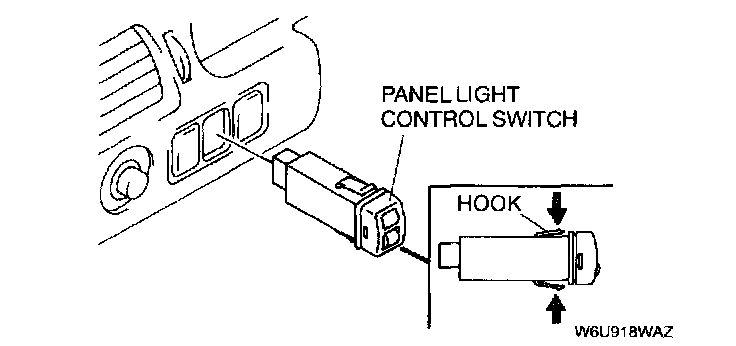

3. Press the hooks of the panel light control switch and pull the switch out.
4. Install in the reverse order of removal.
