Replacement

1. Remove the oil filter element.

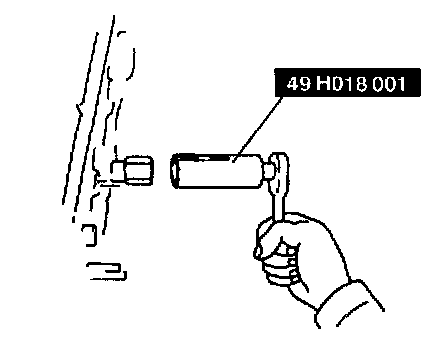

2. Use the SST to remove and install the knock sensor (located above oil filter).

Tightening torque: 19.6 - 4.3 N.m {2.0 - 3.5 kgf.m, 15 - 25 ft.lbf}

3. Install the oil filter element.
