Sunroof / Moonroof Module: Service and Repair
SUNROOF CONTROL MODULE 1.
Disconnect the negative battery cable.
2.
Remove the headliner.
3.

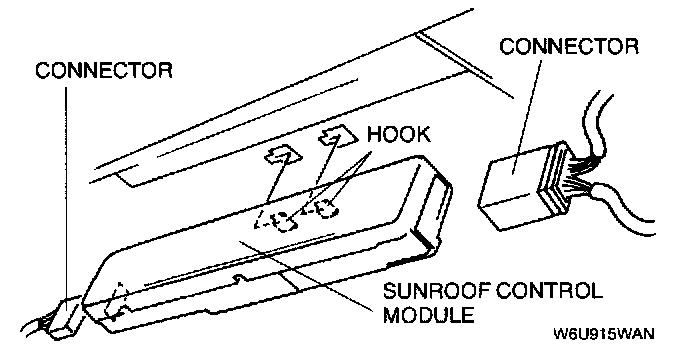

Slide the sunroof control module, and disengage hooks from the sunroof frame.
4.
Disconnect the connectors, and remove the sunroof control module.
5.
Install in the reverse order of removal.
