Battery Removal/Installation

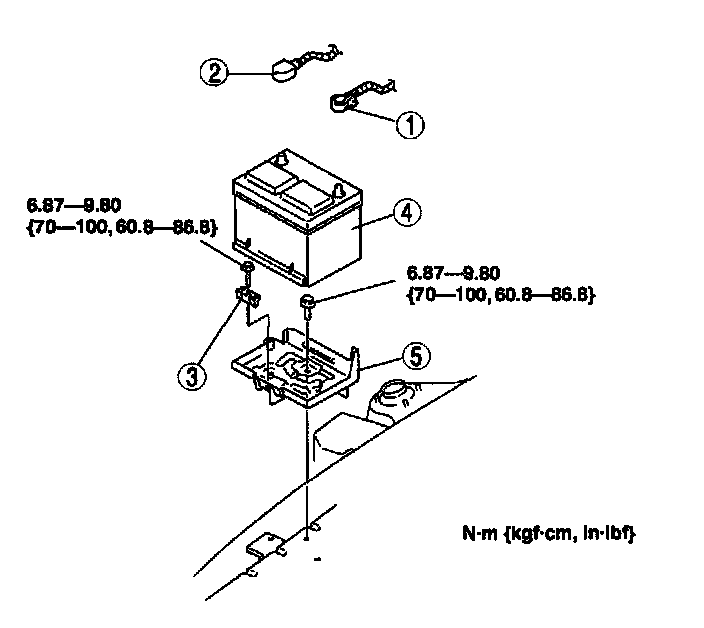

1. Remove in the order indicated below.
1. Negative battery cable
2. Positive battery cable
3. Battery clamp
4. Battery
5. Battery tray

2. Install in the reverse order of removal.
