Clutch Switch: Testing and Inspection

STARTER INTERLOCK SWITCH INSPECTION (MTX)

1. Disconnect the starter interlock switch connector.

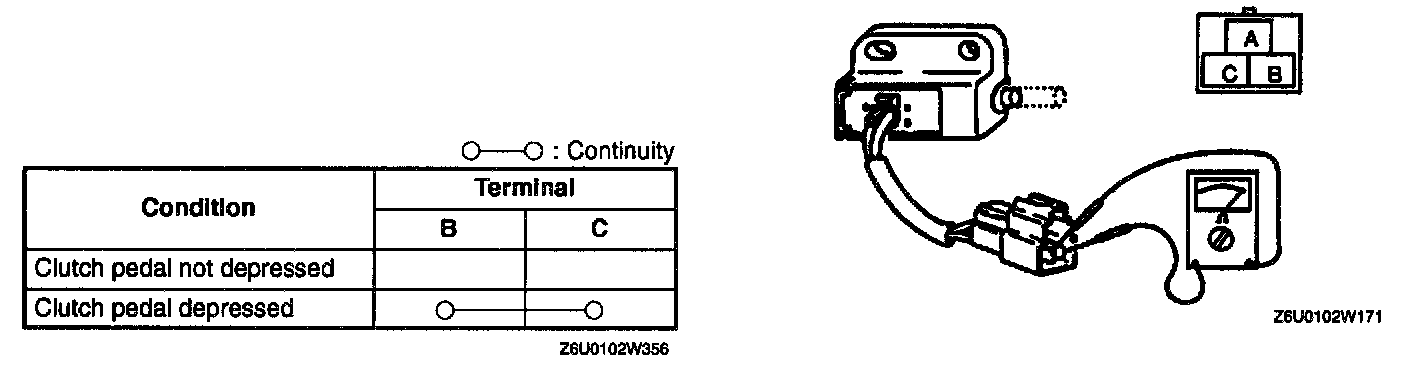

2. Inspect for continuity between terminals of the starter interlock switch using an ohmmeter.
- If not as specified, replace the starter interlock switch.
